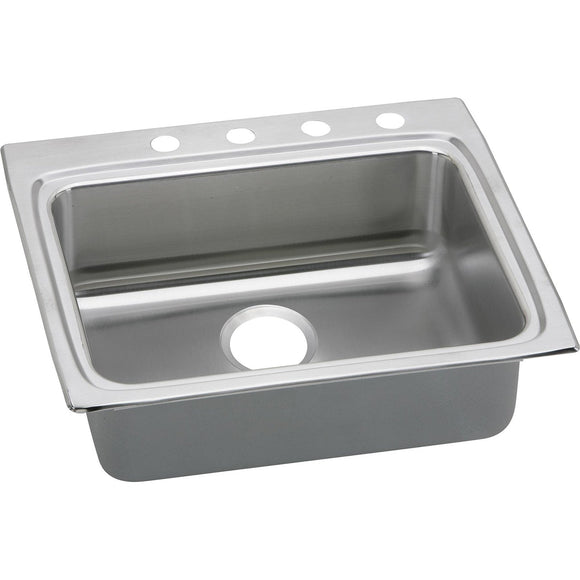

Elkay LRAD2522654 Lustertone Stainless Steel 25" x 22" x 6-1/2", 1-Bowl Top Mount ADA Kitchen Sink

An Elkay Lustertone sink looks as great on day 3,000 as it does on day one. Our signature finish is handcrafted with a rich, uniform grain that adds to the beauty of the sink. Light scratches, which occur with everyday use, naturally blend into the finish with time.

Product Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• LUSTERTONE FINISH: Durable, handcrafted finish looks as great on day 3,000 as on day one. Light scratches naturally blend into sink finish with time.
• TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• MADE IN THE USA: This Elkay product is proudly made in the USA.
• DRAIN OPENING: Sink drain opening measures 3-1/2".

Technical Specifications

• Length: 25"; Width: 22"; Height: 6.5"
• Sink Depth: 6.5"
• Style: Traditional
• Material: Stainless Steel
• Finish: Lustertone
• Intended Use: Residential/Multi-Family
• ADA: Yes
• Installation Type: Top Mount
• Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
• Template Included: No
• Recommended Installation Hardware: LK364, LK463
• Number of Bowls: 1
• Bowl 1 Length: 21"; Bowl 1 Width: 15.75"; Bowl 1 Depth: 6.125"
• Drain Size (Bowl 1): 3.5"
• Soundproofing: Bottom only pads
• Faucet Holes Configuration: 4
• Minimum Cabinet Size: 30"
• Countertop Cutout: 24-3/8" x 21-3/8" (619mm x 543mm) with 1-1/2" (38mm) corner radius
• Optional Soap Dispenser: LKGT1054
• Optional Grid: LKWOBG2115SS
• Optional Cutting Board: CB1516
• Optional Rinsing Basket: LKWRB2115SS, LKWERBSS
• Optional Drain: LK99; Optional Faucet: LKGT1041, LKGT2041
• Gauge: 18
• Base Material: 304
• Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
