Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Documentation
- Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Spec Sheet
- Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Use and Care Guide
- Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Installation Guide
- Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Product Warranty
- Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Installation Guide
Product Video
Elkay LR33194 Double-Bowl Drop-In Kitchen Sink UPC Code: 094902039107
Elkay LR33194 Lustertone Stainless Steel 33" x 19-1/2" x 7-5/8", 2-Bowl Top Mount Kitchen Sink
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.

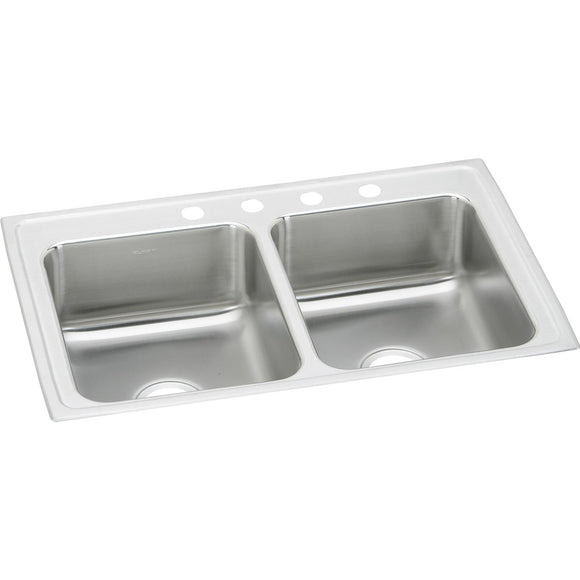

Elkay LR33194 offers a double-bowl drop-in kitchen sink in Lustrous Satin. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time.
Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Features
- Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look.
- Drop-in installation places the finished rim above the countertop.
- Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- Sound-deadening pads reduce noise and vibration during use.
- Mounting clips slide into the U-channel before installation to simplify work beneath the sink.
- Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- Made in the USA.
Elkay LR33194 Double-Bowl Drop-In Kitchen Sink Specifications
- Product Type: Double-Bowl Drop-In Kitchen Sink
- Material: Stainless Steel
- Finish: Lustrous Satin
- Length (in.): 33
- Width (in.): 19.5
- Height (in.): 7.625
- Weight (lb.): 21
- Mounting Type: Drop-in
- Country of Origin: United States
- ADA Compliant: No
- Style: Traditional
- Room / Application: Kitchen
- Sink Base Model: LR3319
- Minimum Cabinet Size (in.): 36
- Number of Bowls: 2
- Sink Depth (in.): 7.625
- Bowl Split: 50/50
- Faucet Hole Configuration: 4
- Mounting Hardware: Part # 64090014 included for countertops up to 3/4" (19mm) thick
- Mounting Hardware Quantity: 1
- Countertop Cutout Dimensions: 32-3/8" x 18-7/8" (822mm x 479mm) with 1-1/2" (38mm) corner radius
- Capacity to Overflow (gal.): 11.9
- Stainless Steel Gauge: 18
- Sound Deadening: Bottom only pads
- Bowl 1 Shape: Rectangular
- Bowl 1 Length (in.): 14
- Bowl 1 Width (in.): 14
- Bowl 1 Depth (in.): 7.5
- Bowl 1 Drain Opening (in.): 3.5
- Bowl 1 Drain Placement: Center Center
- Bowl 2 Shape: Square
- Intended Use: Residential/Multi-Family
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Optional Soap Dispenser: LKGT1054
- Optional Grid: LKWBG1414SS
- Optional Cutting Board: CB1613
- Optional Rinsing Basket: LKWRB1414SS
- Optional Drain: LK99
- Optional Faucet: LKGT1041, LKGT2041
- Base Material: 304
- Code Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
