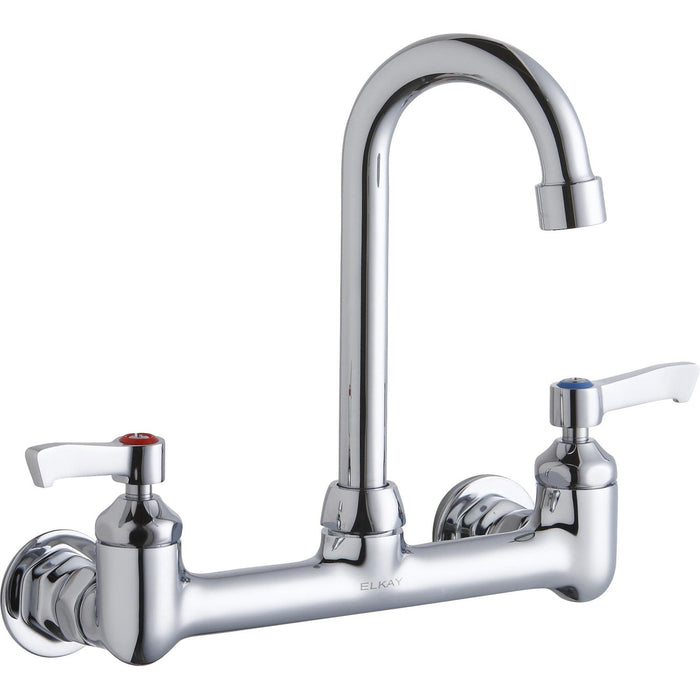

Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Specifications
- Product Type: Wall Faucet 4" Gooseneck Spout 2" Handle Inlet
- Material: Chrome-plated Brass
- Finish: Chrome
- Length (in.): 8
- Width (in.): 3.625
- Height (in.): 9.1875
- Weight (lb.): 5.75
- Mounting Type: Wall-mount
- Country of Origin: China
- CEC Listed: Yes
- ASME Standards: ASME A112.18.1
- CSA Standards: CSA B125.1
- NSF/ANSI 61: Yes
- NSF/ANSI 372: Yes
- Plumbing Certification: cUPC
- NPCC: Yes
- Lead Law Compliant: Yes
- Lead Law Third-Party Certification: Yes
- NSF/ANSI/CAN 61 / AB100 Compliance: Y
- NSF/ANSI/CAN 61 / AB100 Third-Party Certification: Y
- ADA Compliant: Yes, when properly installed
- Connection 1: 1/2" NPT Female
- Cartridge Type: Quarter Turn Ceramic Disc
- Number of Handles: 2
- Handle Type: 2" Lever Handle
- Spout Height (in.): 9.1875
- Spout Reach (in.): 3.625
- Spout Type: Gooseneck
- Deck Clearance (in.): 6.625
- Faucet Hole Size (in.): 1.5
- Faucet Hole Spread (in.): 8
- Faucet Holes Required: 2
- Style: Traditional
- Intended Use: Scrub + Handwash
- Flow Rate: 1.500 GPM
- Spray Type: None
- Code Compliance: ADA & ICC A117.1, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)IAPMO (cUPC_faucets)
Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Documentation
- Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Spec Sheet
- Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Use and Care Guide
- Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Installation Guide
- Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Product Warranty
Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet UPC Code: 094902393452
Elkay LK940GN04L2H Scrub/Handwash 8" Centerset Wall Mount Faucet, 4" Gooseneck Spout
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.
Elkay LK940GN04L2H features a wall faucet 4" gooseneck spout 2" handle inlet in Chrome. ADA compliant when properly installed.
Elkay LK940GN04L2H Wall Faucet 4" Gooseneck Spout 2" Handle Inlet Features
- Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
- Includes water-saving features.
- Built for long-term durability.
- Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts also included.
- Special pin locks faucet into stationary position for required applications.
- Allows for flexibility when installing faucet.
- Faucet designed to be installed using two faucet holes.
- 1/2" Adjustable Inlets.
- Low-flow design.
- Solid Brass Construction.
- Spout Swing Restriction Pin.
- Low flow: Includes water-saving features.
- Solid brass construction: Built for long-term durability.
- Spout swing restrictor pin: Special pin locks faucet into stationary position for required applications.
- 1/2" adjustable inlets: Allows for flexibility when installing faucet.
- Low Flow, Solid Brass Construction, Spout swing restriction pin, 1/2" adjustable inlets
