Rangaire Jensen 664 Illusion Medicine Cabinet Specifications
- Manufacturer: Rangaire / Jensen
- Model: 664
- Also Listed As: 664X
- Collection: Illusion
- Product Type: Medicine Cabinet
- Installation Type: Recessed
- Overall Width: 13"
- Overall Height: 36"
- Overall Depth: 3-7/8"
- Wall Opening / Rough-In: 12" W x 34-1/4" H x 3-1/2" D
- Cabinet Material: Steel
- Cabinet Gauge: 22 Gauge
- Cabinet Finish: Basic White
- Housing Finish Code: PT01
- Mirror Style: Frameless
- Mirror Material: Float Glass
- Mirror Thickness: 1/8"
- Mirror Edge: Polished
- Mirror Finish Code: POL1
- Number of Doors: 1
- Door Back: 22-Gauge Steel
- Door Swing: Reversible, Left or Right
- Hinge Type: Concealed 90° Hinge, HG05
- Number of Hinges: 2
- Door Catch: Spring-Loaded Magnetic Touch Latch
- Number of Shelves: 3
- Shelf Material: Glass
- Shelf Thickness: 3/16"
- Shelves: Adjustable
- Product Weight: Approx. 17.3 lb
- Installation Hardware: Included
Rangaire Jensen 664 Illusion Medicine Cabinet Documentation
- Rangaire Jensen 664 Illusion Medicine Cabinet Spec Sheet
- Rangaire Jensen 664 Illusion Medicine Cabinet Installation Guide
Rangaire Jensen 664 Illusion Medicine Cabinet UPC Code: 656407051499.

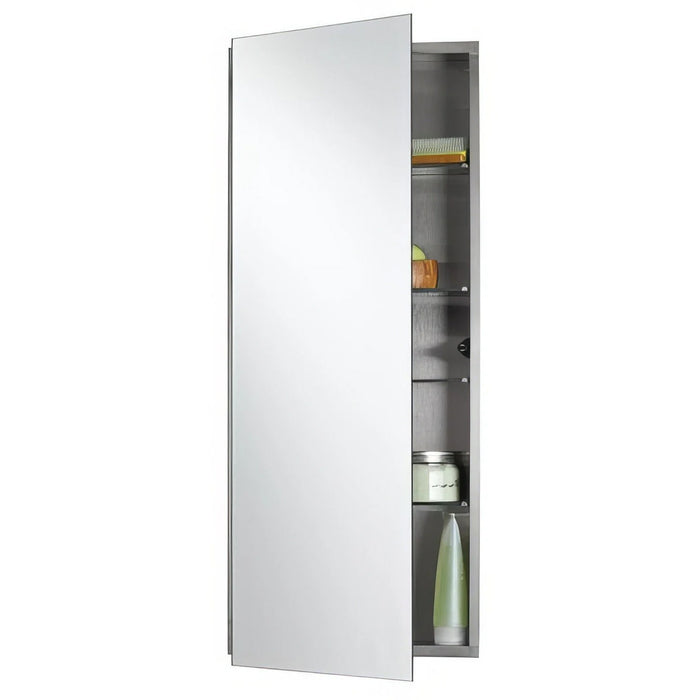

Rangaire Jensen 664 Illusion 13" x 36" Frameless Recessed Medicine Cabinet
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.
Please note - the 664 model is the same as 664X.
The Rangaire Jensen 664 Illusion Medicine Cabinet combines concealed bathroom storage with an exceptionally clean, low-profile appearance. Designed specifically for recessed installation, the cabinet features a frameless polished-edge mirror door that sits close to the wall, helping create the appearance of a continuous mirror surface.
The cabinet housing is formed and welded from durable 22-gauge steel and finished in basic white with a heat-cured acrylic coating. The mirrored door features 1/8" thick float glass with polished edges and a steel backing for added support.
Inside, three adjustable 3/16" glass shelves provide flexible storage for toiletries, medications and other bathroom essentials. Concealed 90° hinges keep the hardware out of sight, while a spring-loaded magnetic touch latch allows the door to open without a visible knob or pull. The cabinet can be installed with either a left-hand or right-hand door swing.
Rangaire Jensen 664 Illusion Medicine Cabinet Features
- Recessed-mount medicine cabinet
- Tall, narrow 13" x 36" overall profile
- Frameless polished-edge mirror door
- 1/8" thick float-glass mirror
- Low-profile design for a nearly flush appearance
- Formed and welded 22-gauge steel cabinet housing
- Basic white heat-cured acrylic finish
- 22-gauge steel-backed mirror door
- Three adjustable glass shelves
- 3/16" thick glass shelving
- Two concealed 90° hinges
- Spring-loaded magnetic touch latch
- No exposed door knob or pull required
- Reversible for left-hand or right-hand door swing
- Aluminum shelf brackets included
- Galvanized steel toothbrush holder included
- Installation hardware included
- Made in the USA
