TOTO CST776CSG#01 Drake Two-Piece Toilet Specifications
- Product Type: Two-Piece Toilet
- Installation Type: Floor mounted
- Primary Material: Vitreous China
- Bowl Shape: Elongated
- Regular Height
- Maximum Gallons per Flush: 1.6
- Flush Type: Gravity
- Flush Valve Included: Yes
- Tank Lever Included: Yes

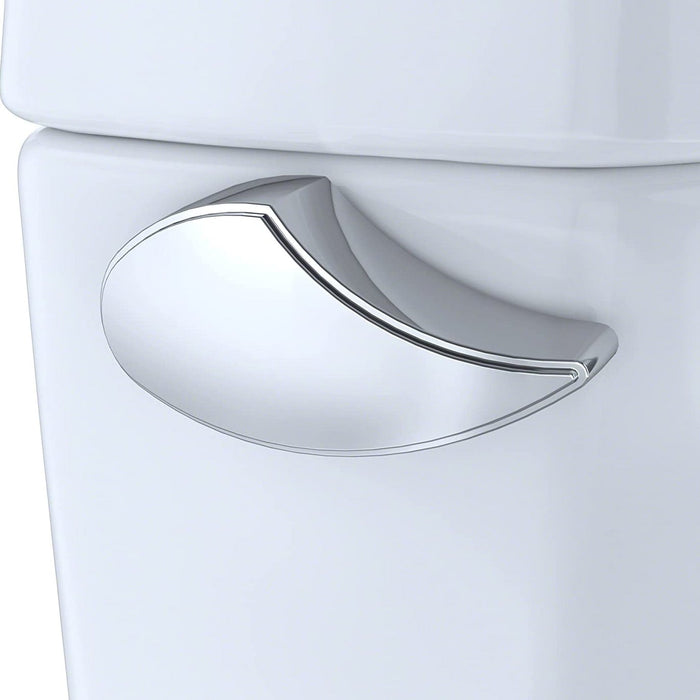

- Trip Lever Placement: Left
- Seat Included: No
- Trapway Design: Exposed
- Bolt Caps Included: No
- Supplier Intended and Approved Use: Residential Use

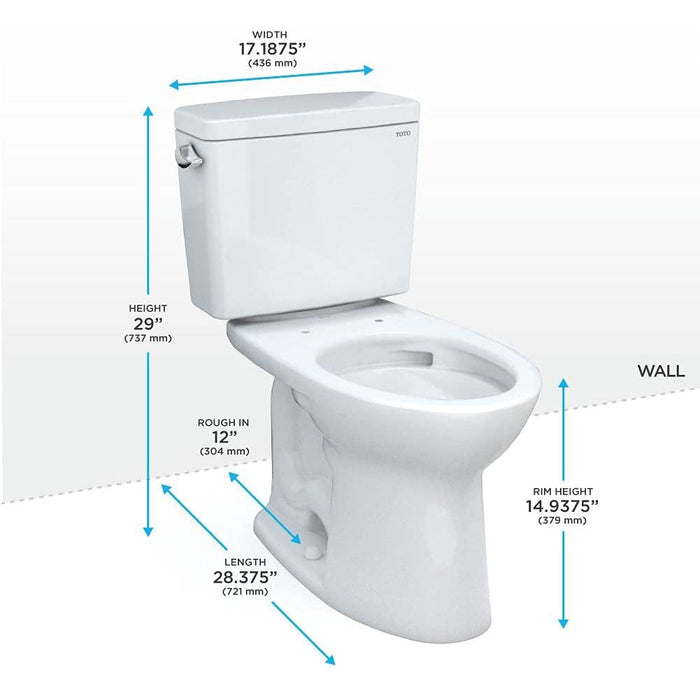

- Overall size: 14.9375" H x 17.1875" W x 28.375" D
- Tank: 7.325" H x 17.1875" W x 7.375" D
- Seat Height - Top to Bottom: 14.9375"
- Trapway Diameter: 2.125"
- Flush Valve Diameter: 3"
- Rough In Size: 12"
- Overall Product Weight: 89 lb.
- 1 Year Limited Warranty
- Seat NOT included
TOTO CST776CSG#01 Drake Two-Piece Elongated Toilet with 1.6 GPF Tornado Flush, Regular Height
Free Shipping. No sales tax outside of PA!
FAQ
• What if I receive my order damaged?
While we take great care in the packaging and handling of all orders, certain circumstances during transit may be beyond our control. We ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo depicting the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a full refund.
• What if I need to return the item I purchased?
We’re happy to accommodate returns within 30 days of receiving your order. Please be aware that return shipping costs are the responsibility of the customer unless the item received is incorrect, defective, or damaged during transit. To initiate a return, simply send us an email detailing the item(s) you wish to return, and we’ll guide you through the steps.
• Why do you collect phone numbers?
Some shipping carriers, particularly those handling freight deliveries, require a phone number to coordinate your delivery. We respect your privacy and want to assure you that your phone number, or any other information you provide, will never be shared with third parties — except when expressly required by the carrier to facilitate delivery arrangements.
The TOTO Drake toilet features a hole-free rimless design and dual nozzles for a highly efficient flushing system, helping keep it cleaner longer. This two-piece toilet uses 1.6 GPF Tornado Flush with CEFIONTECT glaze to create a centrifugal washing action that provides superior bowl rinse. Enjoy a cleaner and fresher bathroom with the Drake toilet.
The Drake bowl and tank set includes a tank to bowl gasket, tank to bowl hardware, and toilet bolt caps. Additional items needed for installation and use must be purchased separately: wax ring, toilet mounting bolts, water supply lines, and toilet seat.
- Designed with quality materials to ensure longevity and durability.
- Complete the set with a SoftClose seat or upgrade with an electronic Washlet bidet seat.
- YES! We can now ship to California!
Please note: this is a Regular Height toilet. For the Universal Height version - please see model CST776CSFG#01.
Powerful Flushing System: TOTO's Tornado flushing system generates 360-degrees of cleaning power that reaches every spot.
Advanced Clean Technology: the CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Improved Water Spot: a large water spot that reduces the places where waste can cling to the bowl.
Simplified Cleaning: the rimless design eliminates places where waste can build up and makes it easier to clean.
Water Conservation: the 1.6 gallon per flush Drake enables you to save water without worrying about diminished performance. The Drake features a wide 3 inch flush valve and a siphon jet bowl that gets the job done in one flush.
Standard Height: standard height is shorter than TOTO's Universal Height for those that prefer not to sit as high.
Gorgeous Contemporary Design: update your oasis with this stylish design that couples well with any bathroom decor. The elongated bowl provides added space for comfort. The toilet fits into 12 inch rough-in installations and has a left-hand trip lever.
Alternative model numbers for this product: CST776CSG01, CST776CSG, TCST776CSG01
TOTO CST776CSG#01 Drake Two-Piece Toilet Documentation
- TOTO CST776CSG#01 Drake CAD Drawing - CST776CS(G)
- TOTO CST776CSG#01 Drake Spec Sheet - CST776CS(G)
- TOTO CST776CSG#01 Drake Installation Manual - CST776CSG
- TOTO CST776CSG#01 Drake Spare Parts Manual - CST776CS(G)
Click here for the TOTO Washlet compatibility chart
