TOTO MW4743074CUFG#01 Toilet Specifications

  • Color/Finish: Cotton White
  • Product Type: WASHLET+ Toilets
  • TOTO Collection: WASHLET+
  • Warranty: Manufacturer One Year Limited
  • Material: Vitreous China, Plastic
  • Shape: Elongated
  • Component Parts SKUs: CT474CUFGT40#01, ST453UA#01, SW3074T40#01
  • Item Length (in.): 28.5
  • Item Width (in.): 18.5625
  • Item Height (in.): 30
  • Item Weight (lb.): 120
  • Rim Height (in.): 16.125
  • Seat Height (in.): 17.5
  • ADA Compliant: Yes
  • WaterSense Certified: Yes
  • CALGreen: Yes
  • CEC Compliant: Yes
  • Battery Included: Yes
  • Battery Type: Alkaline
  • Mounting Type: Floor Mount/Floor Outlet
  • Water Consumption (GPF): 1.0
  • Flush Lever Location: Left
  • Rough-in (in.): 12
  • Flush Valve Size (in.): 3
  • Trapway Diameter (in.): 2.125

TOTO MW4743074CUFG#01 Toilet Support Documentation

TOTO MW4743074CUFG#01 Toilet Product Video

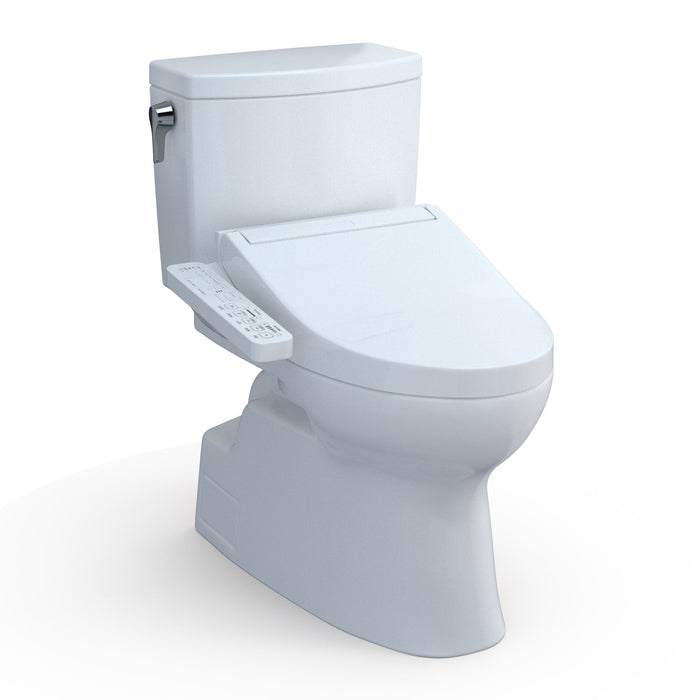

TOTO MW4743074CUFG#01 Washlet+ Vespin II 1G Two-Piece 1.0 GPF Toilet and Washlet+ C2 Bidet Seat

  • $1,160.00 Save $496

Free Shipping
on All Orders!

Ships within 1 - 2 business days
Free Shipping on All Orders!
No Sales Tax Outside of PA!


The TOTO T40 Washlet+ Vespin II 1G two-piece elongated 1.0 GPF Toilet and Washlet C2 Bidet Seat is designed to conceal the Washlet power cord and water supply hose for a seamless installation. Part of the newly redesigned C Series, the Washlet C2 features a soft rear spray, rear cleanse, and front cleanse with the option of an oscillating stream.

The temperature and pressure of the water are adjustable with three temperature settings and five pressure settings. The controls are located on a convenient arm control panel.

Premist wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean. The C2 model utilizes TOTO's eWater+ system when the wand self-cleans. eWater+ transforms the water into a safe and powerful compound, creating peace of mind by cleaning the inside and outside of the wand before and after every use.

The Washlet features a heated SoftClose seat with three temperature settings. The Vespin II 1G toilet features TOTO's Tornado Flush, a hole-free rim design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently. TOTO's industry leading 1G technology offers a powerful flush that flushes completely and fully with only one gallon of water.

This version of the TOTO Vespin II 1G includes CEFIONTECT, a layer of ceramic glaze that minimizes waste from sticking to ceramic surfaces. This feature, coupled with the Washlet Premist and Tornado Flush, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning. The TOTO Vespin II 1G is designed in TOTO's Universal Height, which allows for a more comfortable seat position across a wide range of users.

This Washlet+ includes the Washlet with water supply adapter, Vespin II bowl and tank set with hardware, and toilet bolt caps. Compatible with T40 Washlet+ electronic bidet seat and toilet bowl components only. The Vespin II may be adapted for 10" or 14" rough-in with the purchase of a separately sold rough-in. Additional items needed for installation must be purchased separately: wax ring, toilet mounting bolts, and toilet water supply lines.

TOTO MW4743074CUFG#01 Toilet Features and Overview

  • Washlet+ bidet seat and toilet, specially designed to conceal the Washlet water supply and power cord.
  • Premist wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean.
  • Wand self cleans inside and out with eWater+ advanced technology
  • Adjustable front and rear warm water washing with three temperature settings and five pressure settings. Oscillating stream option
  • SoftClose heated seat, automatic air deodorizer, and warm air dryer with three variable settings
  • Convenient arm control panel
  • Water saving 1G Tornado Flush system with CEFIONTECT glaze to reduce bowl friction
  • Skirted design, Universal Height elongated bowl; ADA, WaterSense, CALGreen, and CEC compliant
  • Included parts: Washlet installation hardware, tank to bowl gasket, tank to bowl hardware, and toilet bolt caps
  • Purchased separately: wax ring, toilet mounting bolts, and water supply lines
  • Compatible with T40 Washlet+ components only
  • May be adapted for 10" or 14" rough-in with optional parts: TSU01W.10R or TSU01W.14R (sold separately)
