TOTO MW6143084CEFG#01 Toilet Specifications
- Color/Finish: Cotton White
- Product Type: WASHLET+ Toilets
- TOTO Collection: WASHLET+
- Warranty: Manufacturer One Year Limited
- Material: Vitreous China, Plastic
- Shape: Elongated
- Component Parts SKUs: CST614CEFGAT40#01, SW3084T40#01
- Item Length (in.): 28.3125
- Item Width (in.): 16.5
- Item Height (in.): 28.75
- Item Weight (lb.): 126.5
- Rim Height (in.): 16.125
- Seat Height (in.): 17.5
- ADA Compliant: Yes
- WaterSense Certified: Yes
- CALGreen: Yes
- CEC Compliant: Yes
- Battery Included: Yes
- Battery Type: Alkaline
- Mounting Type: Floor Mount/Floor Outlet
- Water Consumption (GPF): 1.28

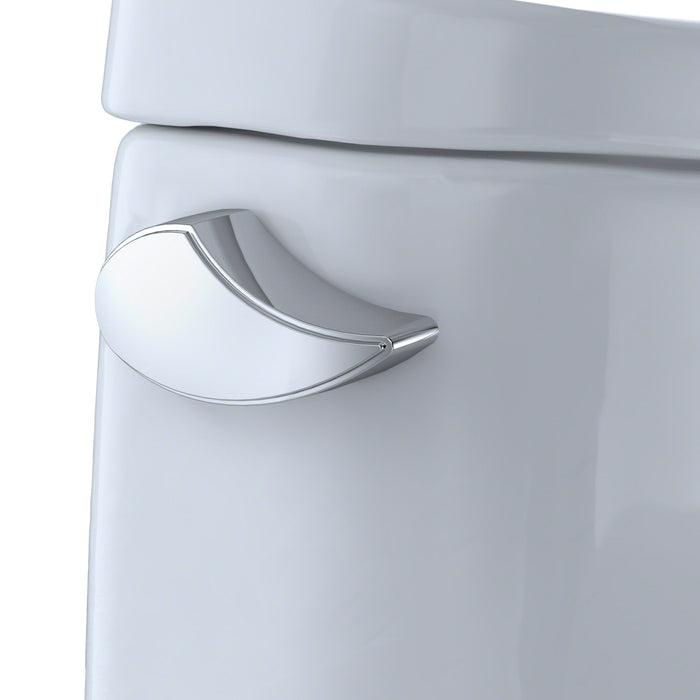

- Flush Lever Location: Left
- Rough-in (in.): 12
- Flush Valve Size (in.): 3
- Trapway Diameter (in.): 2.125
TOTO MW6143084CEFG#01 Toilet Support Documentation
TOTO MW6143084CEFG#01 Toilet Product Videos
*This product is in TOTO's "cotton white" color – which is your regular clean white that will match other white bathroom fixtures.
TOTO MW6143084CEFG#01 Carlyle II One-Piece 1.28 GPF Universal Height Toilet with Washlet+ C5 Bidet Seat
Free Shipping!
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• What about the seat height?
Most standard toilets are 16-17 inches from the floor to the top of the seat, or about 15 inches to the bowl rim. Universal height (or comfort height) toilets, like the one you're looking at, are roughly an inch taller—around 16 inches from the floor to the bowl rim, or 17-18 inches to the seat. Universal height toilets are designed to provide greater comfort for a wider range of users, making it easier to sit and stand, especially for older adults. Keep in mind that while universal height is one of the requirements for ADA compliance, other factors also come into play.
• Will I regret not choosing a toilet with a higher flush volume?
Unlikely. TOTO has been working on flushing technologies as if their livelihood depends on it – and in some places, it does. The truth is, it's more about engineering than just volume – think of a car with a smaller engine that can go faster than one with a larger one. TOTO's Tornado Flush technology uses 3-inch flush valves (instead of traditional flappers) to force water into dual nozzles, creating powerful cyclonic rinsing action. This causes the water to spin in a vortex inside the bowl, making sure every part of it is thoroughly cleaned. The pressure from the nozzles improves both cleansing and bowl evacuation. Other innovations include fully glazed, extra-smooth trapways that prevent debris from sticking, extra-large siphon jets, and seamless, concave rim designs – all working together to make this toilet's flush more than enough for jobs of all magnitudes.

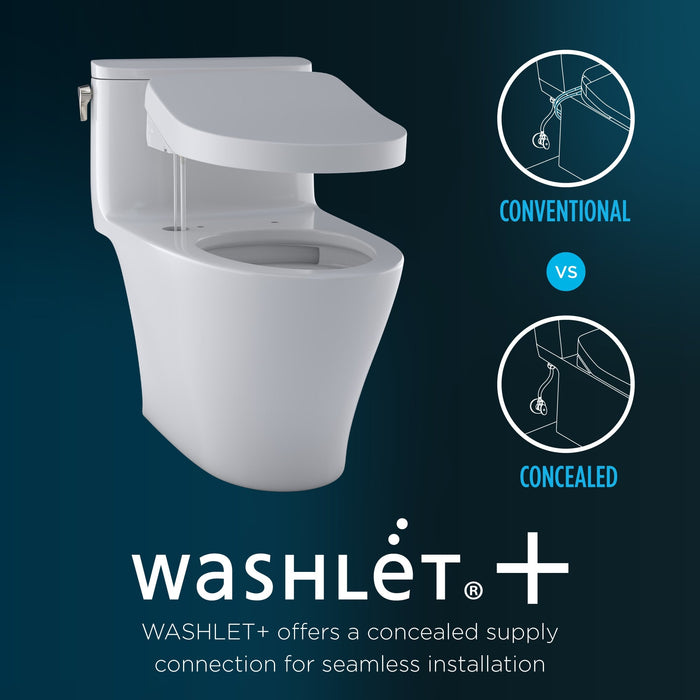

The TOTO T40 Washlet+ Carlyle II one-piece elongated 1.28 GPF Toilet and Washlet C5 Bidet Seat is designed to conceal the Washlet power cord and water supply hose for a seamless installation. Part of the newly redesigned C Series, the Washlet C5 features a soft rear spray, rear cleanse, and front cleanse with the option of an oscillating or pulsating stream.
The temperature and pressure of the water are adjustable, each with five settings. The controls are located on a slim, wireless remote.

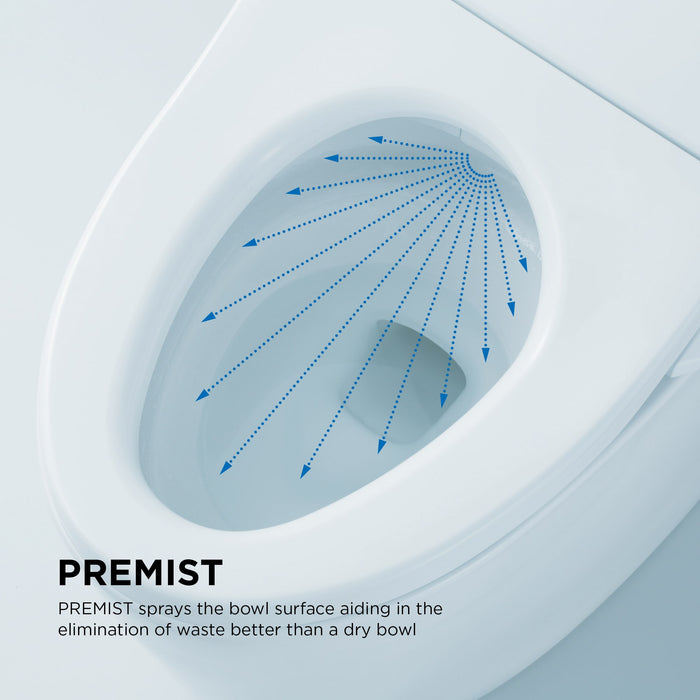

Premist wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean. The C5 model utilizes TOTO's eWater+ system when the wand self-cleans. eWater+ transforms the water into a safe and powerful compound, creating peace of mind by cleaning the inside and outside of the wand before and after every use.

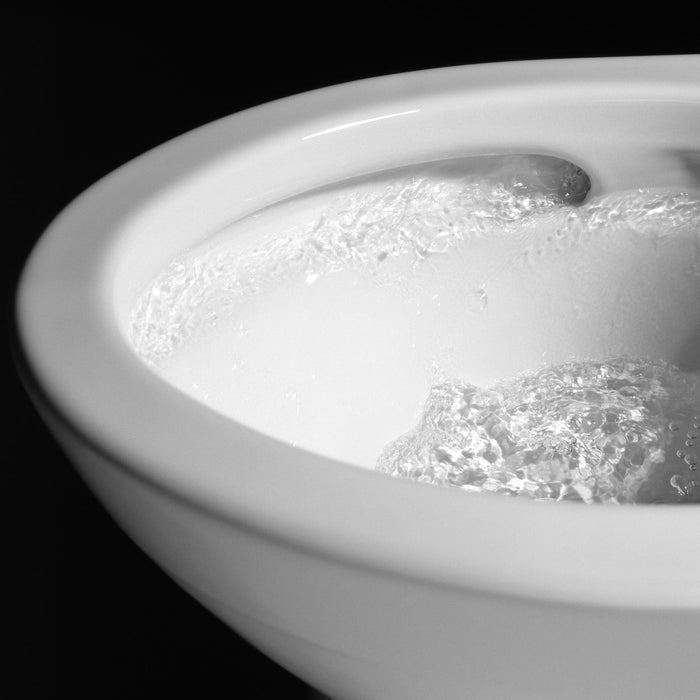

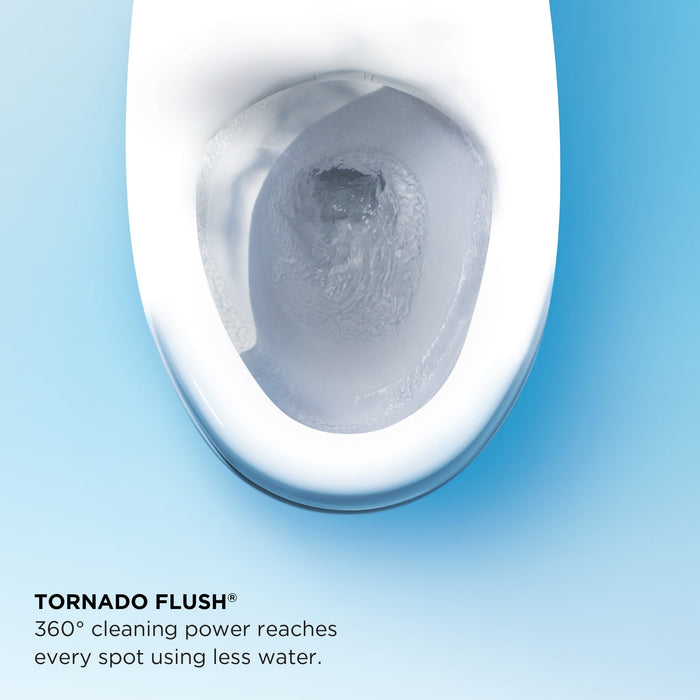

The Washlet features a heated SoftClose seat with five temperature settings. The Washlet features an air deodorizer and a warm air dryer with five temperature settings. The Carlyle II features TOTO's Tornado Flush, a hole-free rim design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently.

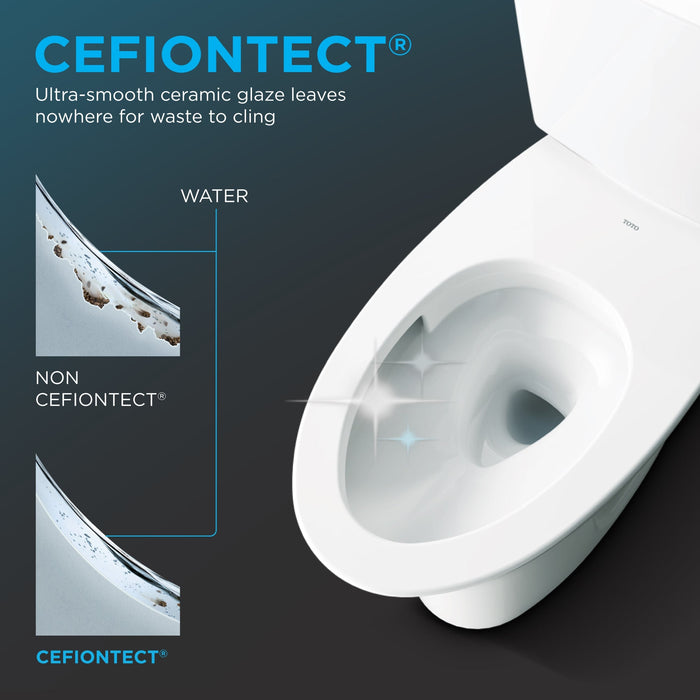

This version of the TOTO Carlyle II includes CEFIONTECT, a layer of ceramic glaze that minimizes waste from sticking to ceramic surfaces. This feature, coupled with the Washlet Premist and Tornado Flush, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning. The TOTO Carlyle II is designed in TOTO's Universal Height, which allows for a more comfortable seat position across a wide range of users.
This Washlet+ includes the Washlet with water supply adapter, Carlyle II bowl and tank set with hardware, and toilet bolt caps. Compatible with T40 Washlet+ electronic bidet seat and toilet bowl components only. Additional items needed for installation must be purchased separately: wax ring, toilet mounting bolts, and toilet water supply lines.
TOTO MW6143084CEFG#01 Toilet Features and Overview
- Washlet+ bidet seat and toilet, specially designed to conceal the Washlet water supply and power cord
- Premist wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean.
- Wand self cleans inside and out with eWater+ advanced technology
- Front and rear warm water washing with five adjustable temperature and pressure controls. Oscillating or pulsing stream option
- Heated seat and warm air dryer with five variable settings
- Automatic air deodorizer removes odors while sitting on the seat
- Remote control operated with easy to read illuminated touch pad and 2 user memory to save preferred settings
- 1.28 gallons per flush Tornado Flush system with CEFIONTECT glaze to reduce bowl friction
- One-piece, Universal Height elongated bowl; ADA, WaterSense, CALGreen, and CEC compliant
- Included parts: Washlet installation hardware, tank to bowl gasket, tank to bowl hardware, and toilet bolt caps
- Purchased separately: wax ring, toilet mounting bolts, and water supply lines
- Compatible with T40 Washlet+ components only
- May be adapted for 10" or 14" rough-in with optional parts: TSU01W.10R or TSU01W.14R (sold separately)
