Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Installation and Included Components
- Installation Required: Yes
- Aerator Included: Yes
- Connection Type: Compression
- Drain Assembly Included: No
- Handle Type: Lever Handle
- Hose Included: Yes
- Included Components: Mounting Hardware; Supply Lines; Spray Head
- Installation Type: Deck Mount
- Soap Dispenser Included: No
- Supply Lines Included: Yes
- Valve Included: Yes
- Valve Type: Ceramic Disc
- Number of Handles: 1
- Number of Installation Holes: 1
Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Certifications and Compliance
- Americans with Disabilities Act (ADA) Compliant: Yes
- California Drought Compliant: Yes
- CALGreen Compliant: Yes
- California AB 1953 Compliant: Yes
- California Proposition 65 Warning Required: No
- CE Marking (Vendor Reported): Yes
- Canadian Standards Association (CSA) B125.1 Certified: Yes
- Canadian Standards Association (CSA) Certified: Yes
- Canadian and U.S. Uniform Plumbing Code (cUPC) Certified: Yes
- International Association of Plumbing and Mechanical Officials (IAPMO) Certified: Yes
- International Safe Transit Association (ISTA) 1A Certified: Yes
- Lead Free: Yes
- Low Lead Compliant: Yes
- NSF International Certified: Yes
- Uniform Plumbing Code (UPC) Certified: Yes
- Vermont Act 193 Compliant: Yes
Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Downloads
- Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Frequently Asked Questions
- Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Installation Guide
- Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Specification Sheet
- Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Warranty
Vigo VG02001MBS Edison Product Video
Open Vigo VG02001MBS Edison Product Video
Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet UPC Code: 849922068565.

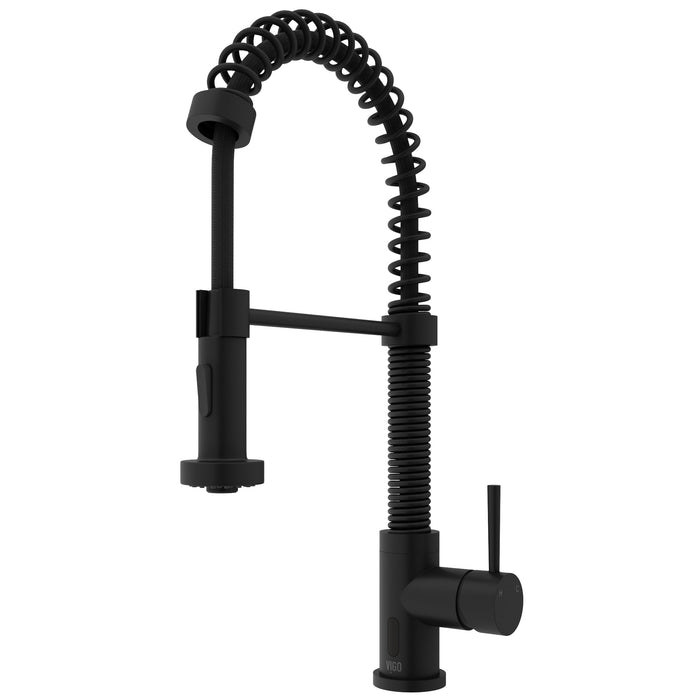

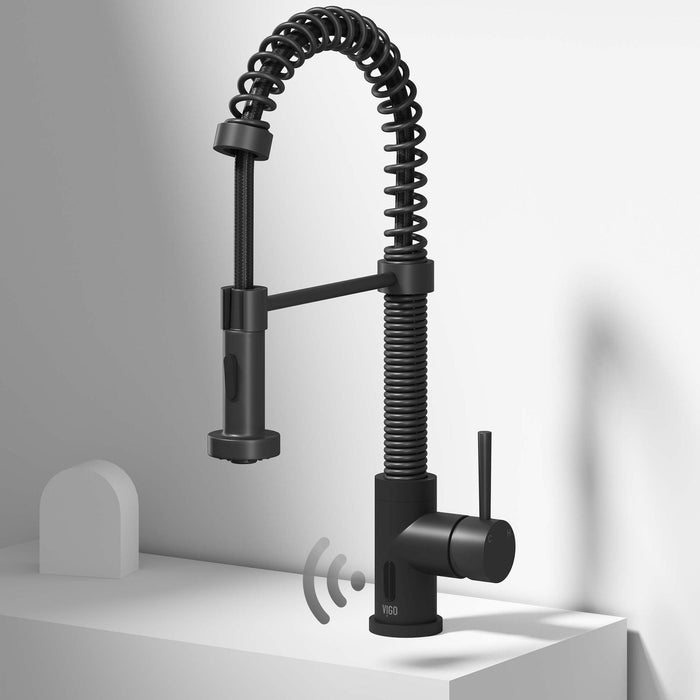

Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet in Matte Black
Frequently Asked Questions

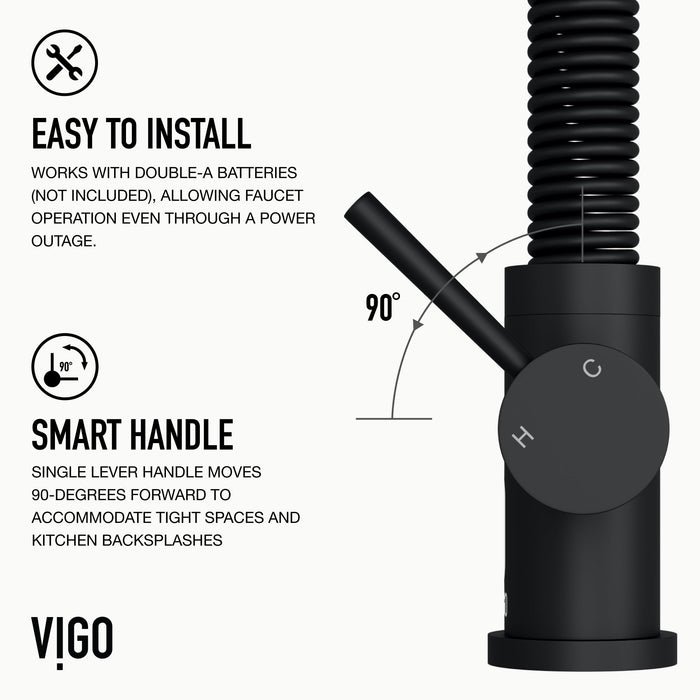

• Does the touchless faucet need an electrical outlet?
The Edison VG02001MBS uses an under-sink battery box powered by four AA batteries, so its supplied battery setup does not require an electrical outlet. The batteries are not included.

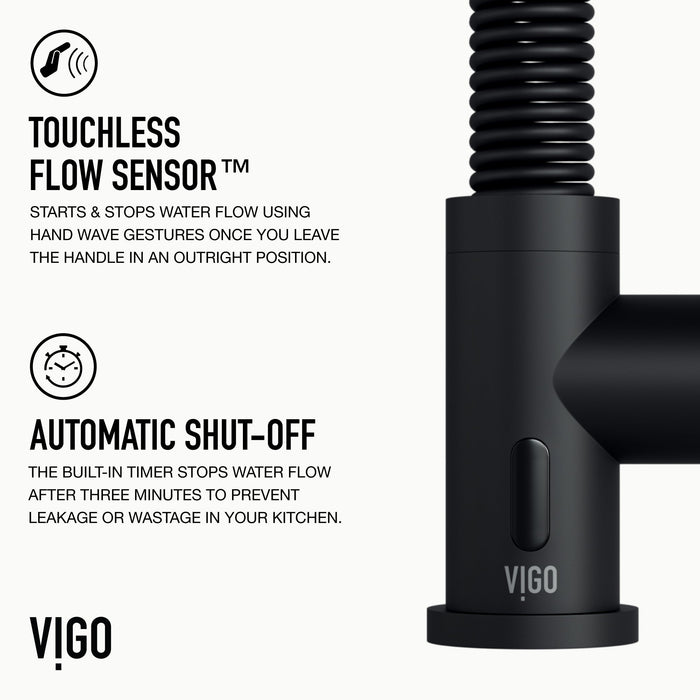

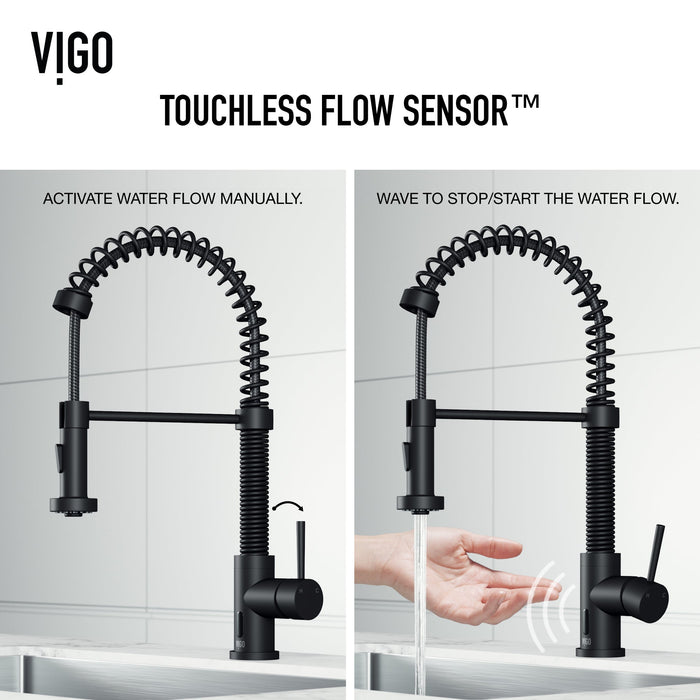

• How does the hands-free control work?

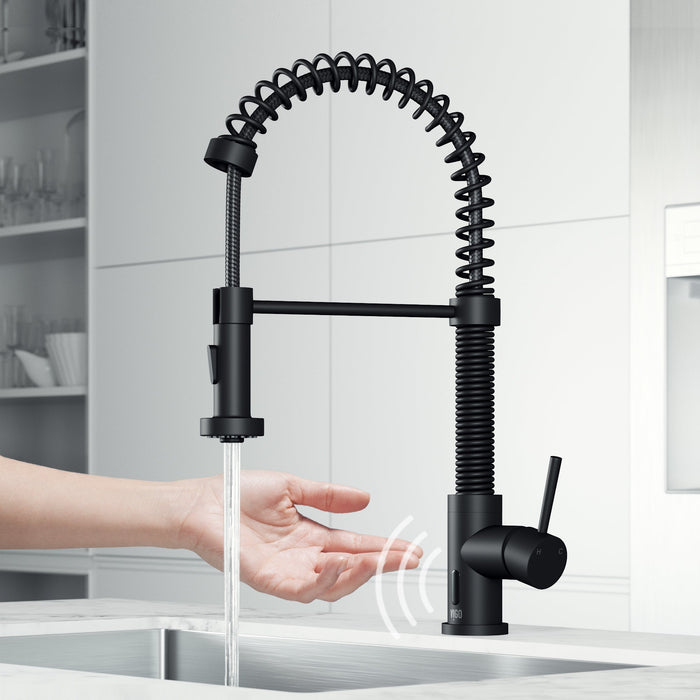

Wave your hand at the sensor to activate the water without touching the faucet. The handle is used to set the water temperature and flow. This model combines the motion sensor with a pull-down spray head.
• Will it fit a sink with three faucet holes?
The faucet itself mounts through one 1-3/8-inch hole. To cover additional sink holes, use a compatible deck plate purchased separately. Verify the plate's coverage and leave space below the sink for the battery box and hose connections.

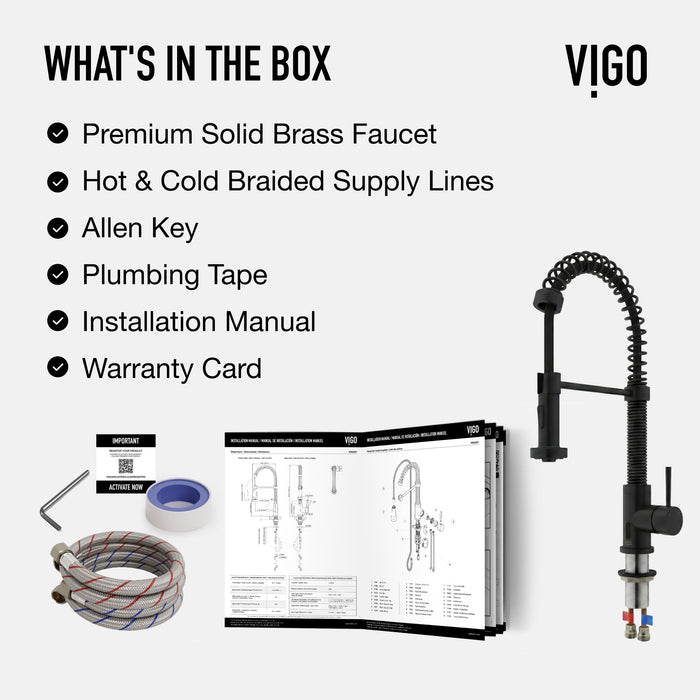

• Are the supply lines and mounting hardware included?
Yes. The faucet includes supply lines with 3/8-inch connections, mounting hardware, and the spray head. The touchless system's battery box is shown in the installation manual; you will need to provide four AA batteries.

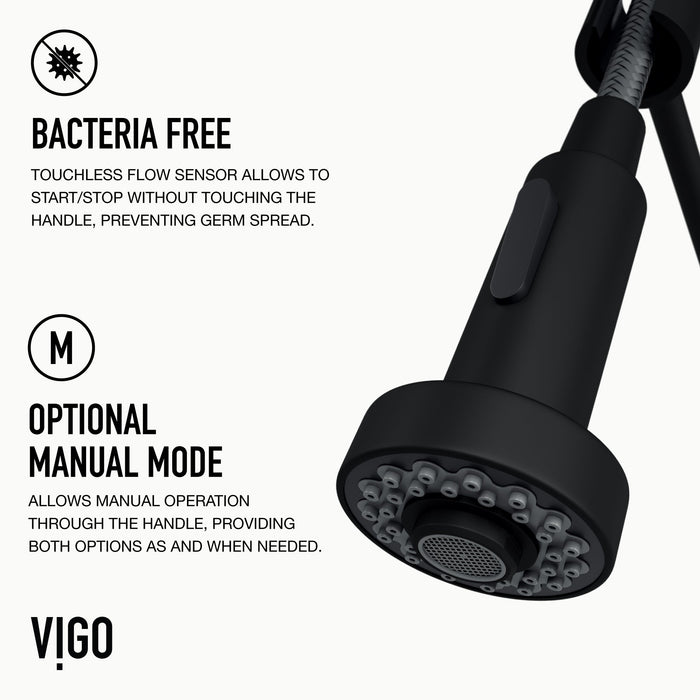

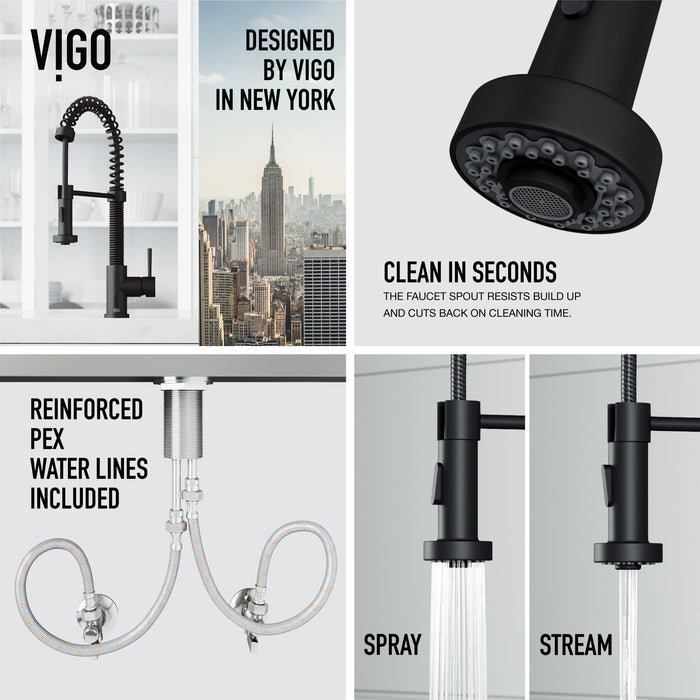

• Does the pull-down head have both spray and stream settings?
Yes. A button on the spray head switches between stream and spray. The faucet has a maximum flow rate of 1.8 gallons per minute and a 360-degree swivel spout.

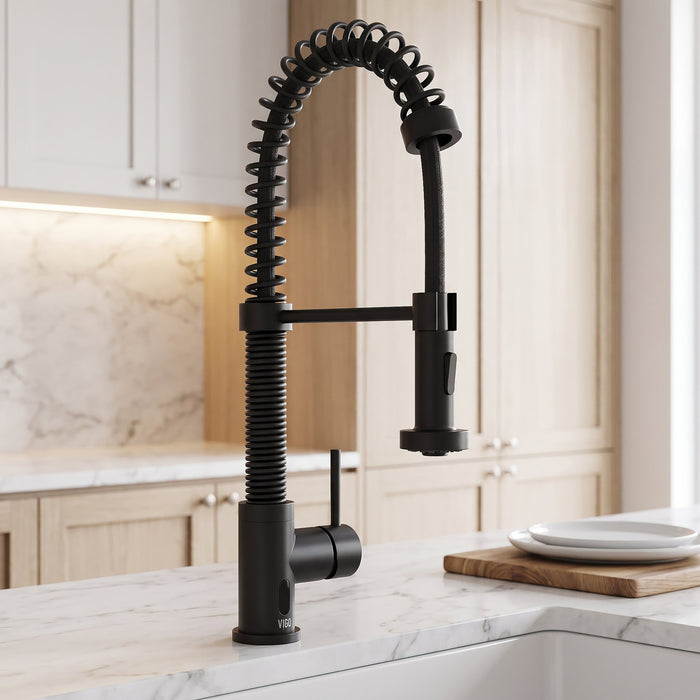

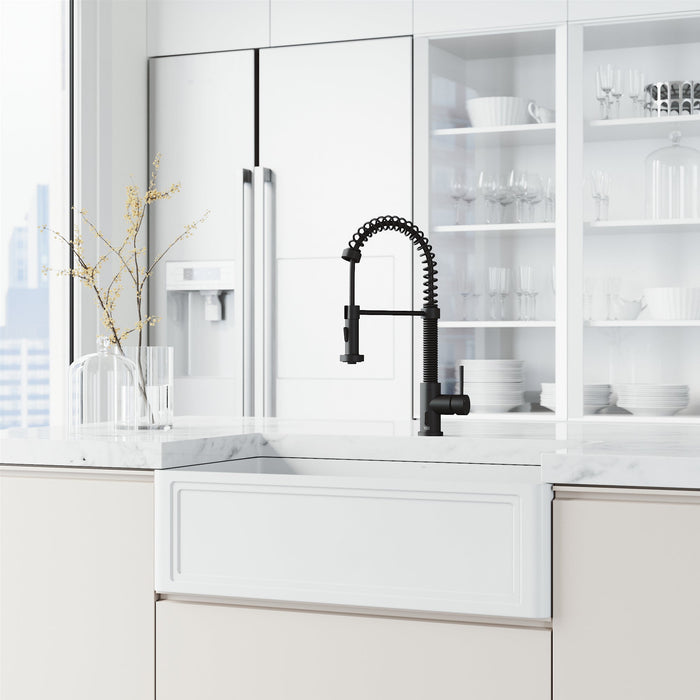

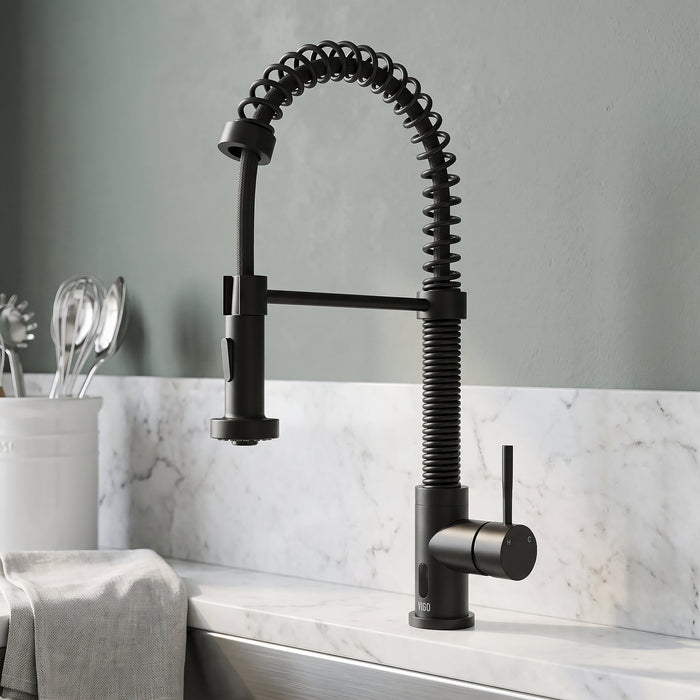

The Vigo VG02001MBS Edison adds touchless activation to a spring-neck pull-down kitchen faucet in matte black. A single lever sets temperature and flow, while the sensor allows hands-free operation. The dual-mode sprayer, 30-inch hose and 360-degree swivel help with rinsing and cleanup. Its brass body measures 19 inches high, with an 8-inch spout reach. Wipe clean with a dry cloth and do not use strong liquid cleaners. Manufacturer limited warranty; see the linked warranty document for coverage periods, eligibility and exclusions.
Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Features
- Exposed spring-neck spout with pull-down spray head.
- Select stream or spray using the dual-mode spray head.
- Touchless sensor activation allows hands-free water control.
- The spout swivels 360 degrees to reach around the sink.

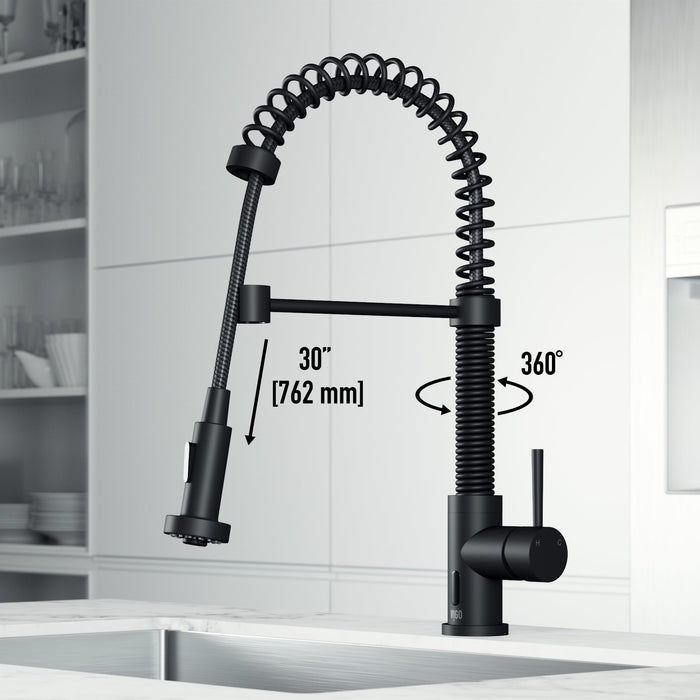

- 30-inch hose extends the sprayer reach.

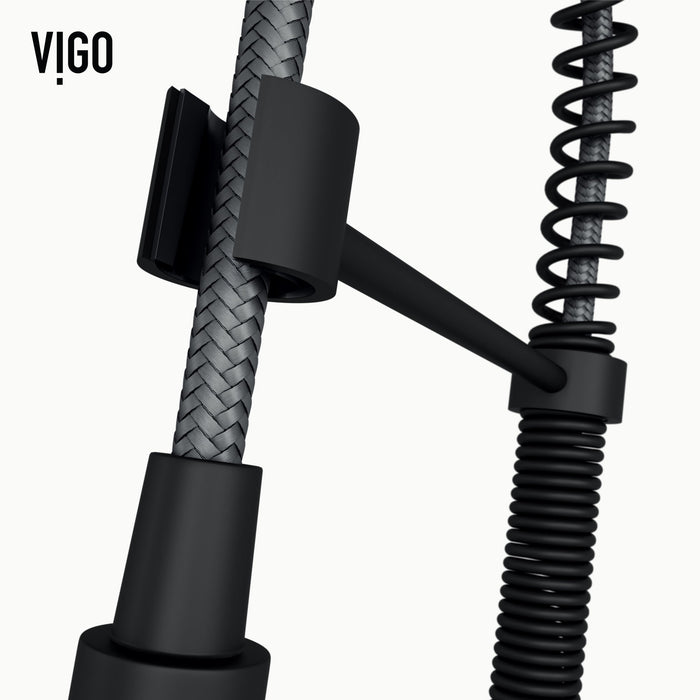

- Manual spray-head docking keeps the head in place between uses.

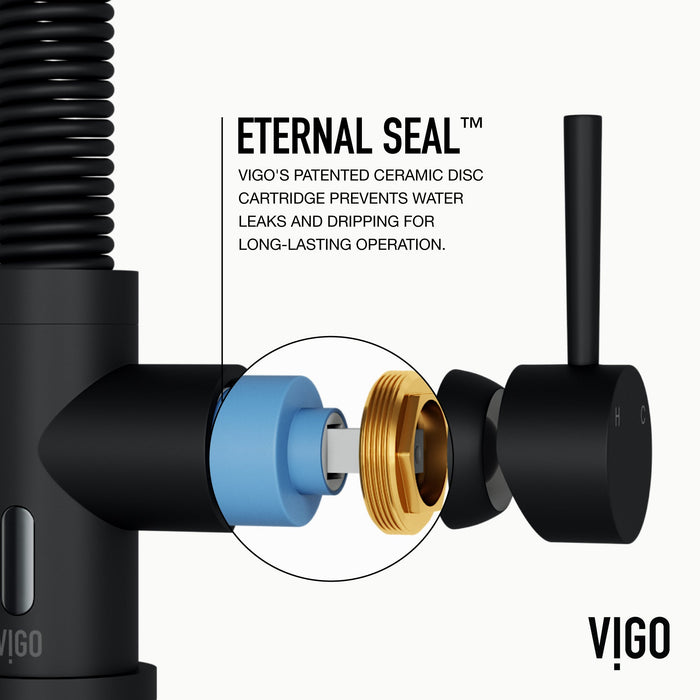

- Brass construction with a matte black finish and a ceramic disc valve.
- Single-hole mounting with 3/8-inch compression supply connections and a 1.8 GPM maximum flow rate.
- Mounting hardware, supply lines and spray head are included.
- Manufacturer limited warranty; see the linked warranty document for coverage periods, eligibility and exclusions.
Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Specifications
- Model Number: VG02001MBS
- Collection: Edison
- Product Type: Touchless Spring Pull-Down Kitchen Faucet
- Finish: Matte Black
- Material: Brass
- Application: Commercial and Residential
- High-Arc Spout: Yes
- Sensor Activation: Touchless
- Spout Type: Gooseneck / High Arc
- Spray Included: Yes
- Spray Type: Pull Down
- Sprayer Mode: Dual Mode
- Style: Modern / Contemporary
- Swivel Spout: Yes
- Country of Origin: China
- Additional Features: 360 Degree Spout Swivel; Secure Docking; Spot Resistant
- Water Efficient: Yes
- Water Saving: Yes
- Maximum Flow Rate: 1.8 gallons per minute
- Maximum Water Pressure (psi): 60
- Minimum Water Pressure (psi): 40
- Fingerprint Resistant: Yes
- Rust Resistant: Yes

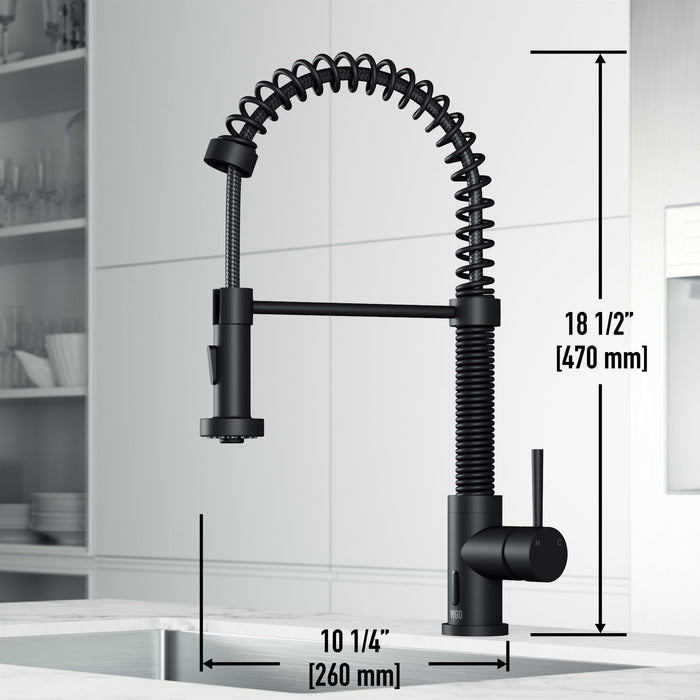

Vigo VG02001MBS Edison Touchless Spring Pull-Down Kitchen Faucet Dimensions
Overall dimensions and spout measurements are nominal values from the vendor worksheet. Refer to the installation drawings for detailed measurements before planning the installation.
- Overall Depth (in.): 10
- Overall Height (in.): 19
- Weight (lb.): 11
- Overall Width (in.): 4
- Cartridge Size (mm): 35
- Connection Size (in.): 3/8
- Hose Length (in.): 30
- Installation Hole Diameter (in.): 1-3/8
- Maximum Deck Thickness (in.): 1-1/2
- Spout Height (in.): 6
- Spout Reach (in.): 8
