Vigo VG08005 Brielle 6-Jet Shower Panel System Installation and Included Components
- Installation Required: Yes
- Connection Type: Compression
- Drain Assembly Included: No
- Handle Included: Yes
- Handle Type: Knob
- Hose Included: Yes
- Included Components: Mounting Hardware; Bracket; Hand Shower; Handles; Pressure Balance/Scald Guard; Supply Lines; Thermostatic Valve; Vacuum Breaker
- Installation Type: Wall Mount
- Valve Type: Thermostatic Cartridge
- Number of Handles: 5
- Number of Installation Holes: 6
Vigo VG08005 Brielle 6-Jet Shower Panel System Certifications and Compliance
- Americans with Disabilities Act (ADA) Compliant: No
- California Drought Compliant: No
- California AB 1953 Compliant: No
- CE Marking (Vendor Reported): No
- Canadian Standards Association (CSA) B125.1 Certified: Yes
- Canadian Standards Association (CSA) Certified: Yes
- Canadian and U.S. Uniform Plumbing Code (cUPC) Certified: Yes
- EPA WaterSense Certified: No
- International Association of Plumbing and Mechanical Officials (IAPMO) Certified: Yes
- International Safe Transit Association (ISTA) 1A Certified: Yes
- Massachusetts Compliant: Yes
- California Code of Regulations, Title 20 Compliant: No
- Uniform Plumbing Code (UPC) Certified: Yes
- Vermont Act 193 Compliant: Yes
Vigo VG08005 Brielle 6-Jet Shower Panel System Downloads
- Vigo VG08005 Brielle 6-Jet Shower Panel System Frequently Asked Questions
- Vigo VG08005 Brielle 6-Jet Shower Panel System Installation Guide
- Vigo VG08005 Brielle 6-Jet Shower Panel System Specification Sheet
- Vigo VG08005 Brielle 6-Jet Shower Panel System Warranty
Vigo Massage Shower Panels Video
Open Vigo Massage Shower Panels Video
Vigo VG08005 Brielle 6-Jet Shower Panel System UPC Code: 813775012259.

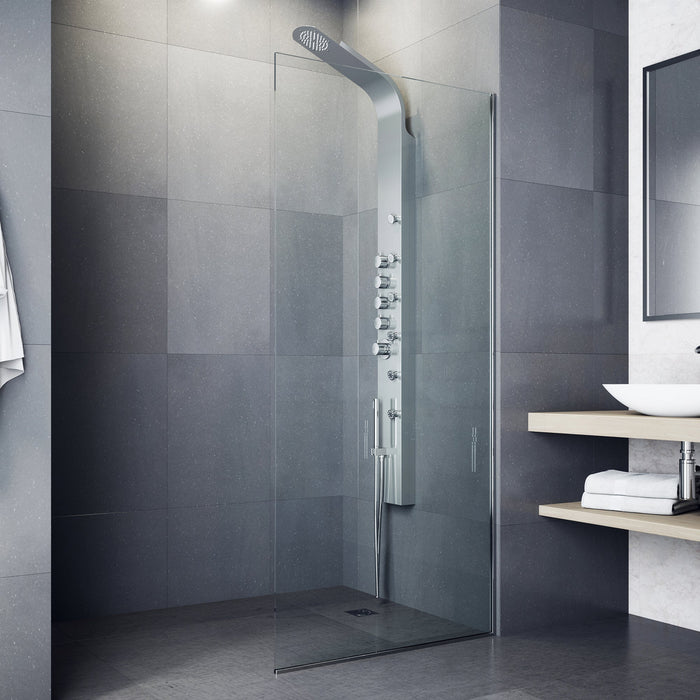

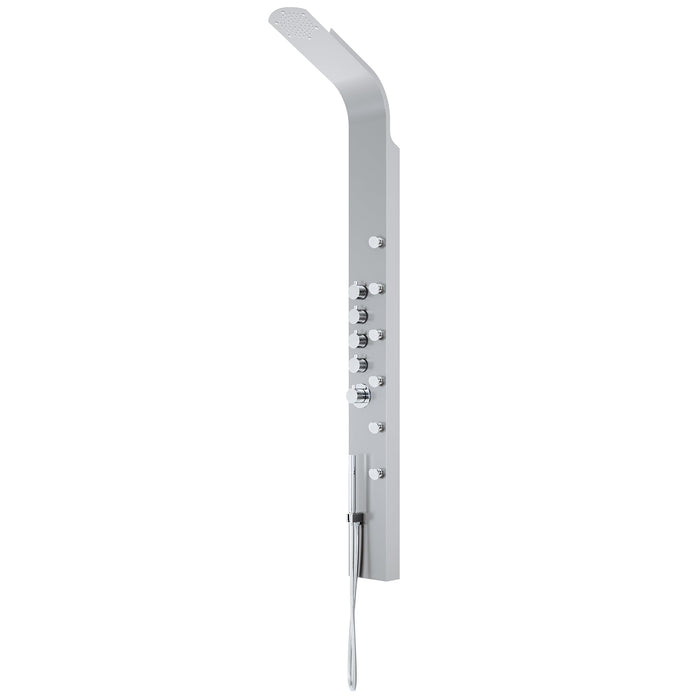

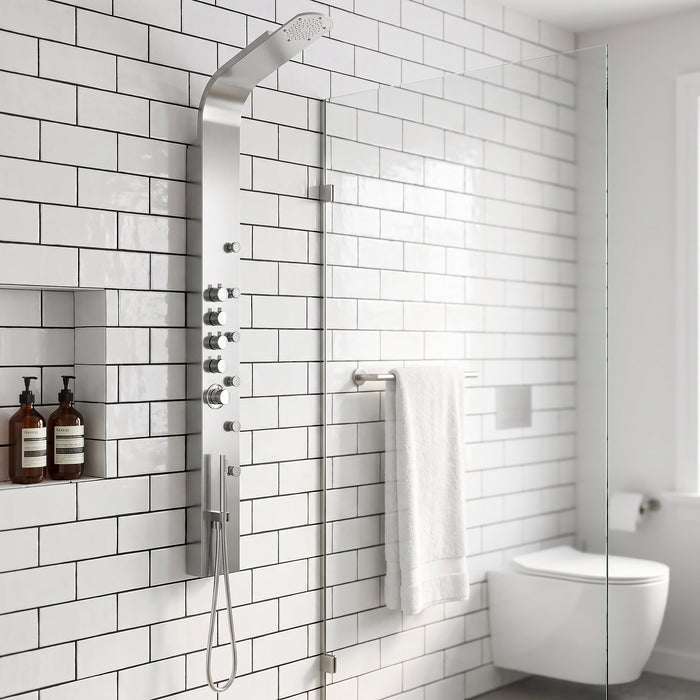

Vigo VG08005 Brielle 6-Jet Rain Shower Panel with Hand Shower in Stainless Steel
Frequently Asked Questions
• Can the rain shower, body jets, and hand shower run at the same time?
Yes. The Brielle has separate volume controls that allow the showerhead, body jets, and hand shower to operate together. The six body jets are divided into two groups of three. Using more outlets shares the available water flow; it does not increase the panel's total supply.
• Can this replace my showerhead without changing the plumbing?
This Brielle panel connects to hot and cold water supplies using 1/2-inch connections. It is not one of VIGO's shower-arm retrofit models. Have your plumber compare the existing supply locations with the installation drawing before assuming it can replace the current setup without plumbing changes.
• Is a temperature-control valve included?
Yes. The panel includes an integrated thermostatic valve and temperature control. The valve is part of the panel assembly, so confirm the supply layout against the model's installation manual when planning the connection.
• How high should I mount the shower panel?
VIGO's general guidance is to place the overhead showerhead at least 6 inches above the tallest person using the shower. Check the model's installation drawing, ceiling clearance, and water-supply positions before drilling the mounting holes.
• How do I clean the panel and keep the finish looking good?
Wipe the surface regularly with a soft cloth and mild soap, then rinse and dry it. Avoid abrasive pads and strong cleaners. For persistent buildup in the outlets, follow the model's maintenance instructions or ask VIGO support before taking the controls apart.

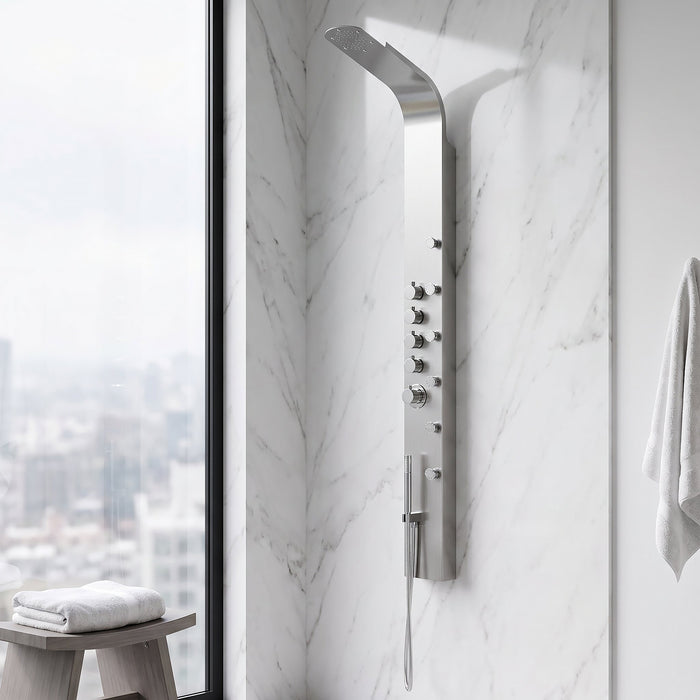

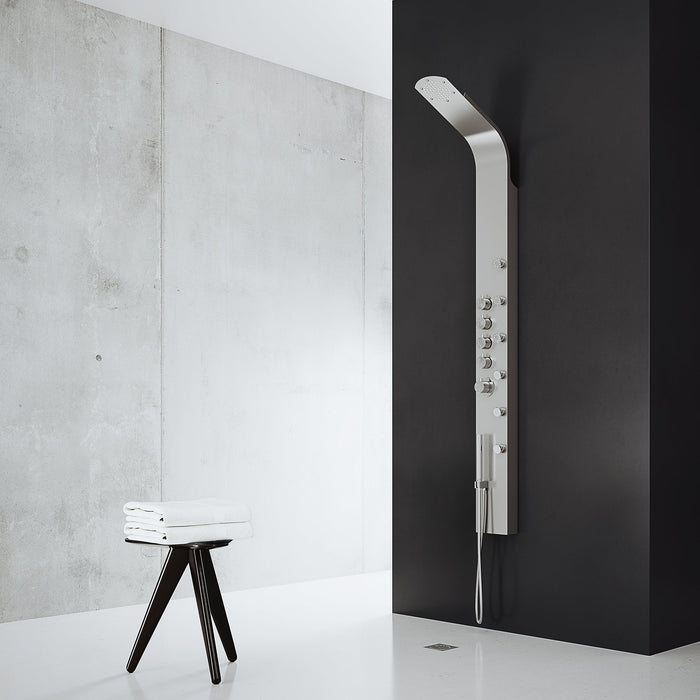

The Vigo VG08005 Brielle is a stainless steel shower panel with a fixed round rainfall head, six body jets and a separate hand shower. Its wall-mounted body measures 68 inches high by 6 inches wide. Thermostatic controls regulate temperature, with separate controls for shower functions. The hand shower is supplied with a 58-inch hose for directed rinsing. Wipe clean with a dry cloth and do not use strong liquid cleaners. Manufacturer limited warranty; see the linked warranty document for coverage periods, eligibility and exclusions.
Vigo VG08005 Brielle 6-Jet Shower Panel System Features
- Wall-mounted stainless steel panel with a stainless steel finish.

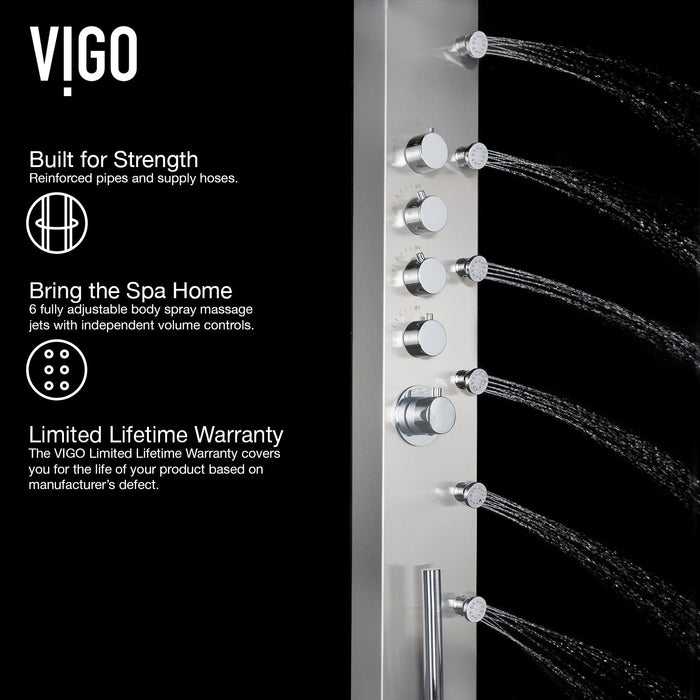

- 6 body spray jets provide directed water coverage.
- 6-1/2-inch fixed round rainfall showerhead.
- A separate hand shower includes a 58-inch hose.

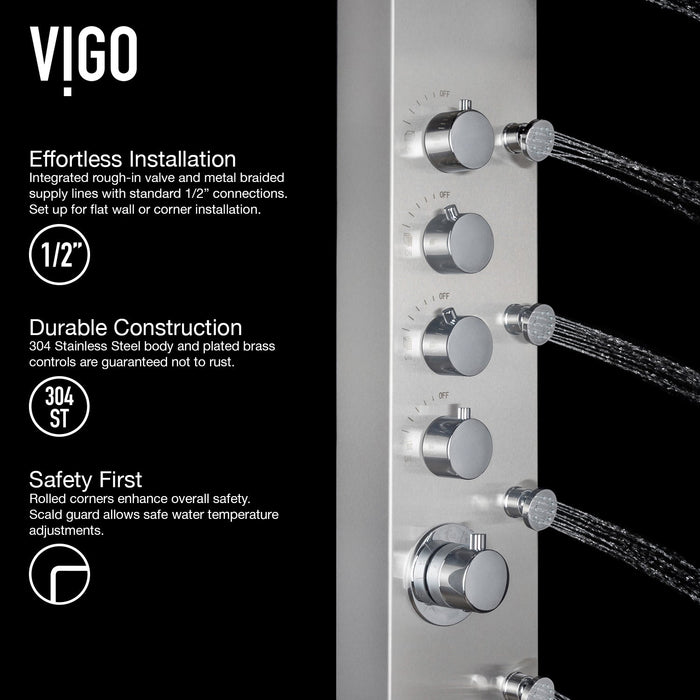

- Thermostatic cartridge regulates the water temperature.
- Separate controls allow multiple shower functions to operate together.
- 68-inch-high by 6-inch-wide panel.
- Inner Guard technology helps reduce mineral buildup in the body jets.
- Maximum flow rate: 2.5 GPM; 1/2-inch compression water connections.

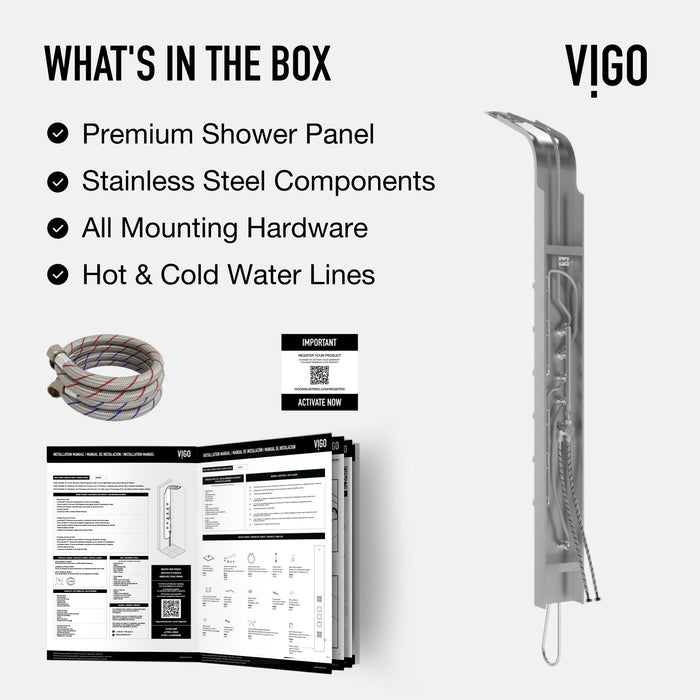

- Mounting hardware, bracket, hand shower, controls, supply lines and thermostatic valve are included.
- Manufacturer limited warranty; see the linked warranty document for coverage periods, eligibility and exclusions.
Vigo VG08005 Brielle 6-Jet Shower Panel System Specifications
- Model Number: VG08005
- Collection: Brielle
- Product Type: 6-Jet Shower Panel System
- Finish: Stainless Steel
- Material: Stainless Steel
- Application: Commercial and Residential
- Shape: Rectangular
- Style: Modern / Contemporary
- Country of Origin: China
- Body Jets: 6
- Rainfall Showerhead Size (in.): 6-1/2
- Rainfall Showerhead: Round; Fixed
- Hand Shower Hose Length (in.): 58
- Additional Features: Body Spray; Corrosion Resistant; Easy to Install; Flexible Hose; Hot/Cold Indicators; Kink Free Hose; Scald Guard
- Water Efficient: No
- Maximum Flow Rate: 2.5 gallons per minute
- Maximum Water Pressure (psi): 60

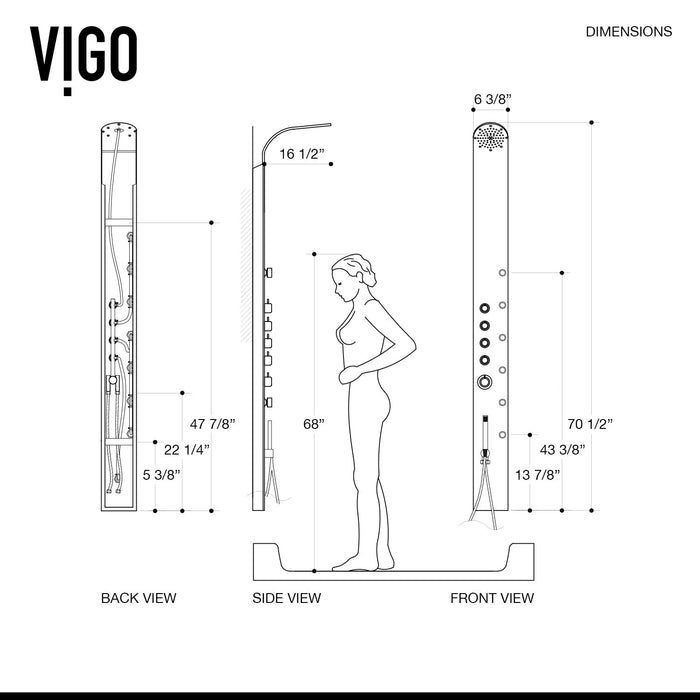

Vigo VG08005 Brielle 6-Jet Shower Panel System Dimensions
Overall dimensions and spout measurements are nominal values from the vendor worksheet. Refer to the installation drawings for detailed measurements before planning the installation.
- Overall Depth (in.): 20
- Overall Height (in.): 68
- Weight (lb.): 31
- Overall Width (in.): 6
- Connection Size (in.): 1/2
