Vigo VG08013MG Ellington 4-Jet Shower Panel System Installation and Included Components
- Installation Required: Yes
- Connection Type: Compression
- Drain Assembly Included: No
- Handle Included: Yes
- Handle Type: Knob
- Hose Included: Yes
- Included Components: Mounting Hardware; Bracket; Hand Shower; Handles; Pressure Balance/Scald Guard; Supply Lines; Thermostatic Valve; Vacuum Breaker
- Installation Type: Wall Mount
- Valve Type: Thermostatic Cartridge
- Number of Handles: 3
Vigo VG08013MG Ellington 4-Jet Shower Panel System Certifications and Compliance
- Americans with Disabilities Act (ADA) Compliant: No
- California Drought Compliant: No
- California AB 1953 Compliant: No
- CE Marking (Vendor Reported): Yes
- Canadian Standards Association (CSA) B125.1 Certified: Yes
- Canadian Standards Association (CSA) Certified: Yes
- Canadian and U.S. Uniform Plumbing Code (cUPC) Certified: Yes
- EPA WaterSense Certified: No
- International Association of Plumbing and Mechanical Officials (IAPMO) Certified: Yes
- International Safe Transit Association (ISTA) 1A Certified: Yes
- Massachusetts Compliant: Yes
- California Code of Regulations, Title 20 Compliant: No
- Uniform Plumbing Code (UPC) Certified: Yes
- Vermont Act 193 Compliant: Yes
Vigo VG08013MG Ellington 4-Jet Shower Panel System Downloads
- Vigo VG08013MG Ellington 4-Jet Shower Panel System Frequently Asked Questions
- Vigo VG08013MG Ellington 4-Jet Shower Panel System Installation Guide
- Vigo VG08013MG Ellington 4-Jet Shower Panel System Specification Sheet
- Vigo VG08013MG Ellington 4-Jet Shower Panel System Warranty
Vigo Massage Shower Panels Video
Open Vigo Massage Shower Panels Video
Vigo VG08013MG Ellington 4-Jet Shower Panel System UPC Code: 849922073248.

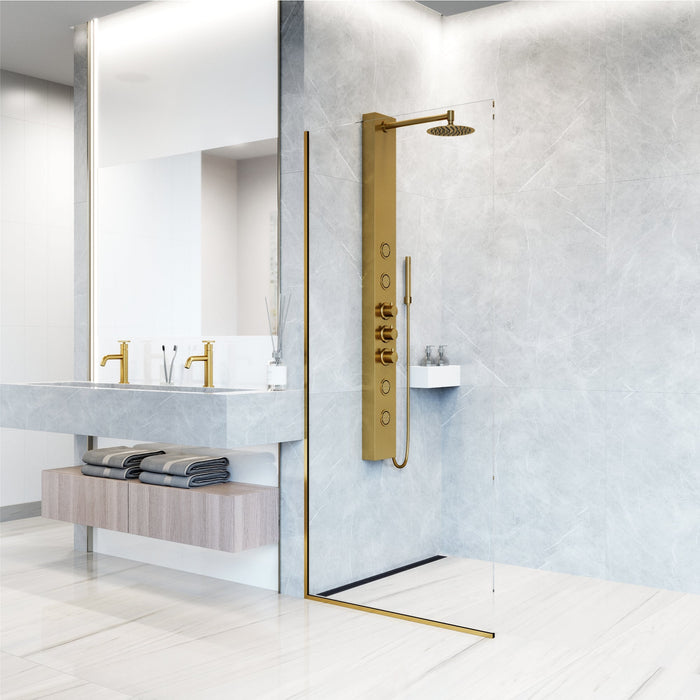

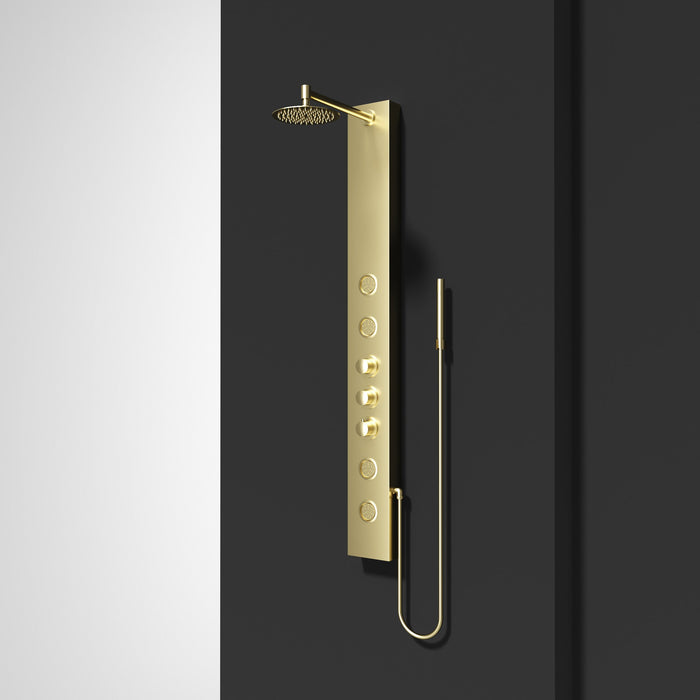

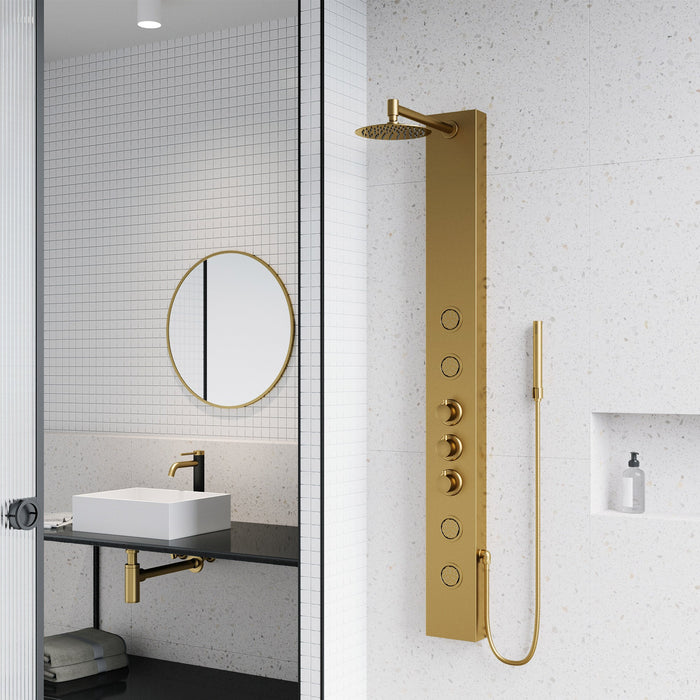

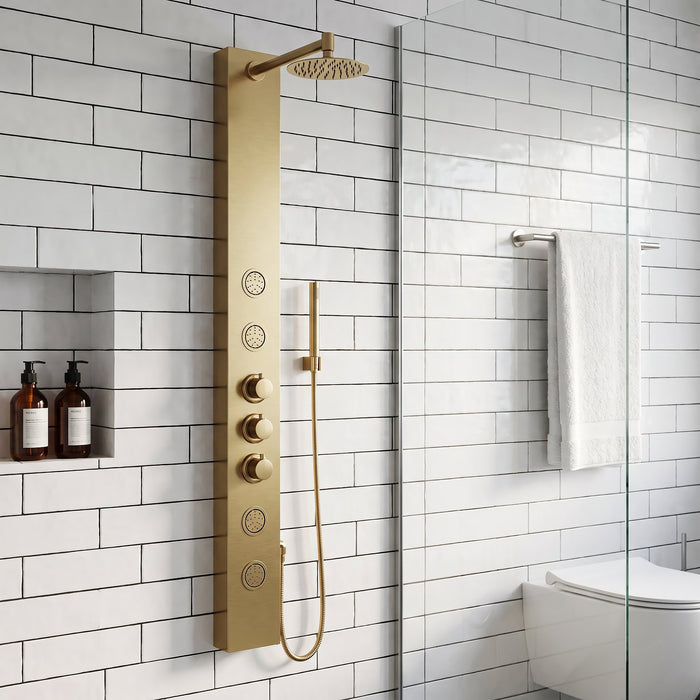

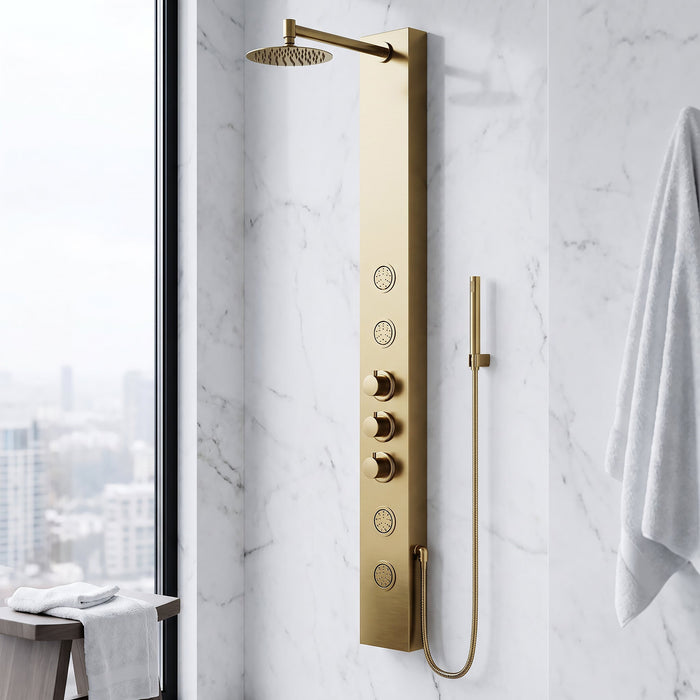

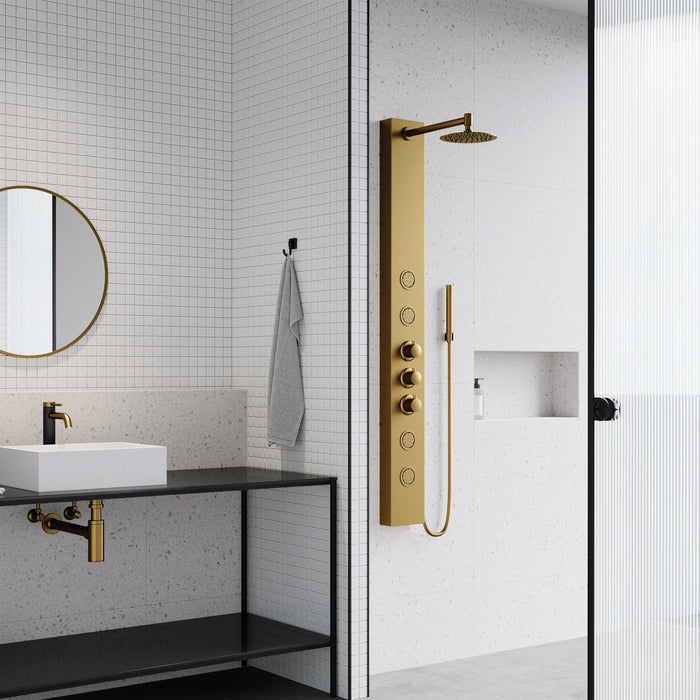

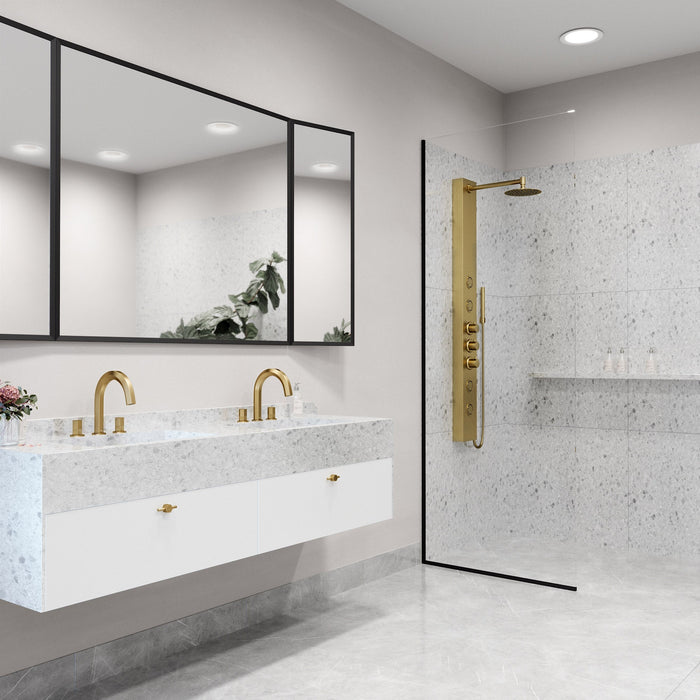

Vigo VG08013MG Ellington 4-Jet Rain Shower Panel with Hand Shower in Matte Brushed Gold
Frequently Asked Questions

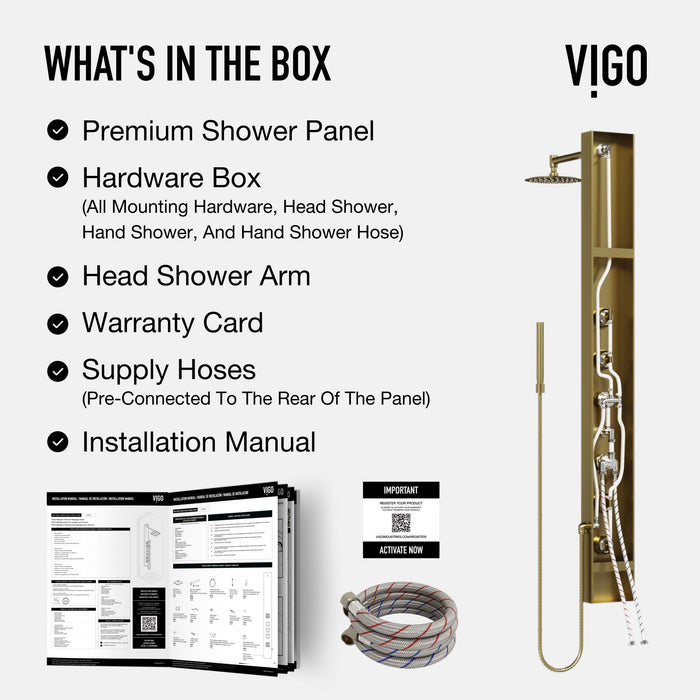

• What shower components are included with this panel?
The Ellington includes a rainfall showerhead, four body jets, a hand shower, integrated controls, mounting hardware, and supply lines. The panel body is aluminum; matte brushed gold is its exterior finish.
• Can this replace my showerhead without changing the plumbing?
This Ellington panel connects to hot and cold water supplies using 1/2-inch connections. It is not one of VIGO's shower-arm retrofit models. Have your plumber compare the existing supply locations with the installation drawing before assuming it can replace the current setup without plumbing changes.
• Is a temperature-control valve included?
Yes. The panel includes an integrated thermostatic valve and temperature control. The valve is part of the panel assembly, so confirm the supply layout against the model's installation manual when planning the connection.
• How high should I mount the shower panel?
VIGO's general guidance is to place the overhead showerhead at least 6 inches above the tallest person using the shower. Check the model's installation drawing, ceiling clearance, and water-supply positions before drilling the mounting holes.
• How do I clean the panel and keep the finish looking good?
Wipe the surface regularly with a soft cloth and mild soap, then rinse and dry it. Avoid abrasive pads and strong cleaners. For persistent buildup in the outlets, follow the model's maintenance instructions or ask VIGO support before taking the controls apart.

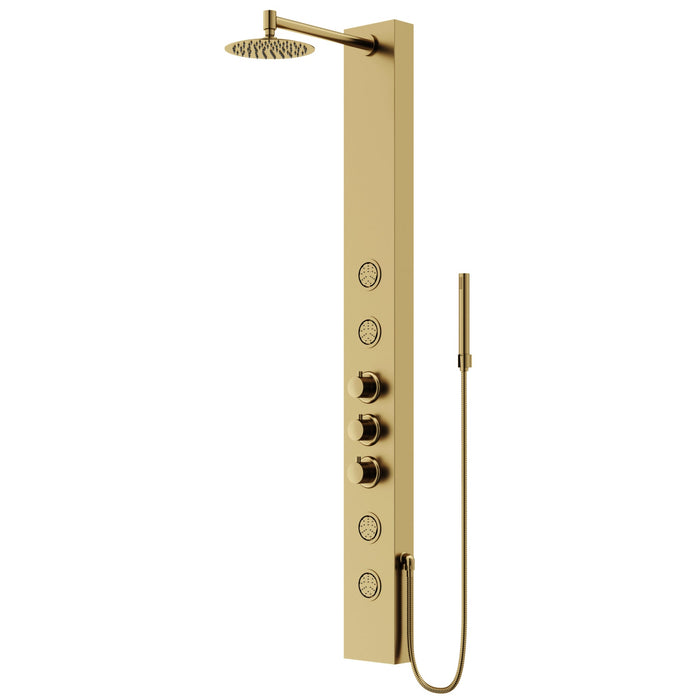

The Vigo VG08013MG Ellington combines a rainfall showerhead, four body jets and a hand shower in a wall-mounted panel with a matte brushed gold finish. The aluminum panel measures 59 inches high by 6 inches wide. Thermostatic controls regulate temperature, while the diverter selects the shower function. A 58-inch hand shower hose provides reach for rinsing. Wipe clean with a dry cloth and do not use strong liquid cleaners. Manufacturer limited warranty; see the linked warranty document for coverage periods, eligibility and exclusions.
Vigo VG08013MG Ellington 4-Jet Shower Panel System Features
- Wall-mounted aluminum panel with a matte brushed gold finish.

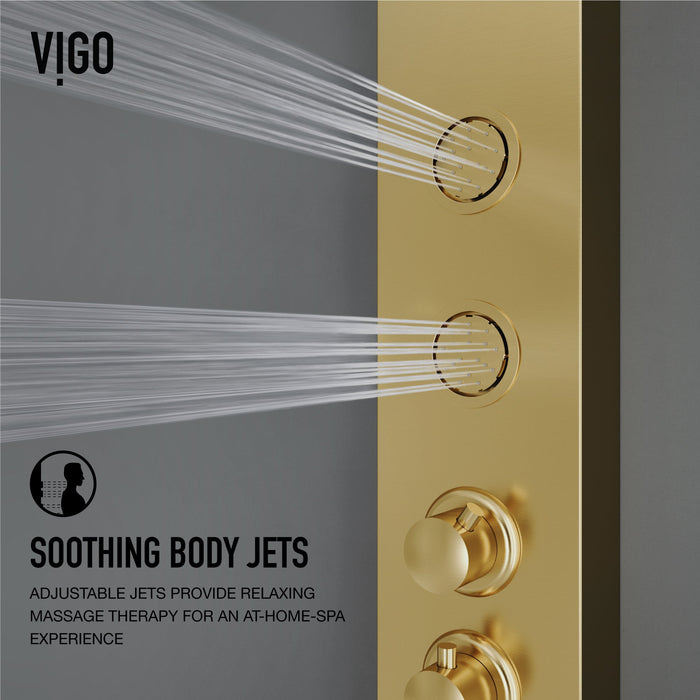

- 4 body spray jets provide directed water coverage.

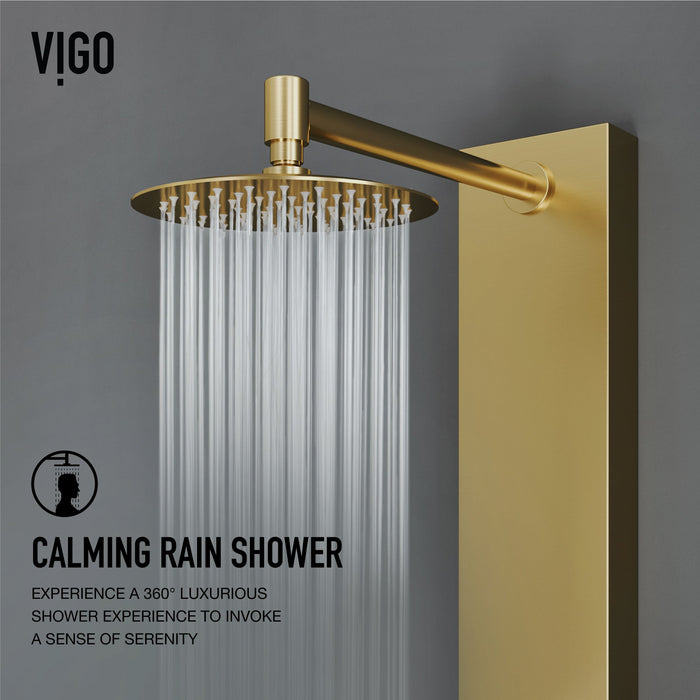

- 8-inch adjustable round rainfall showerhead.

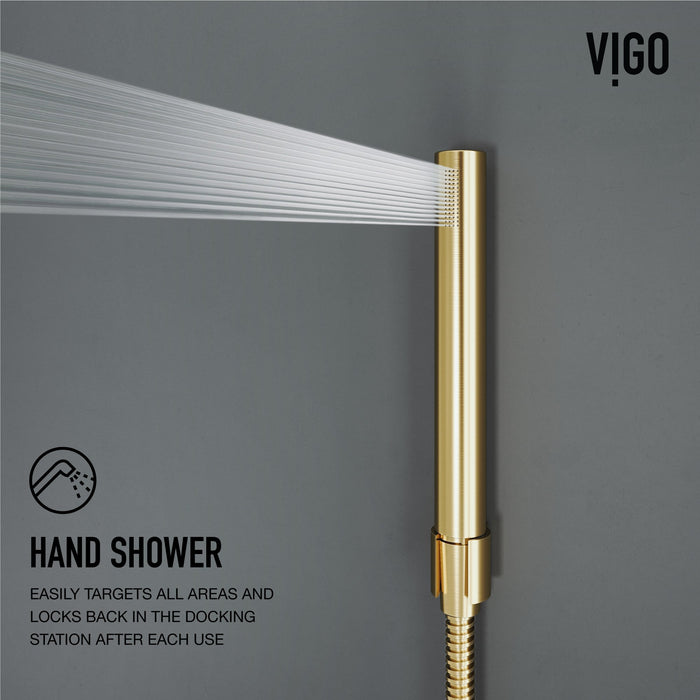

- A separate hand shower includes a 58-inch hose.
- Thermostatic cartridge regulates the water temperature.
- Function diverter switches between shower outlets.

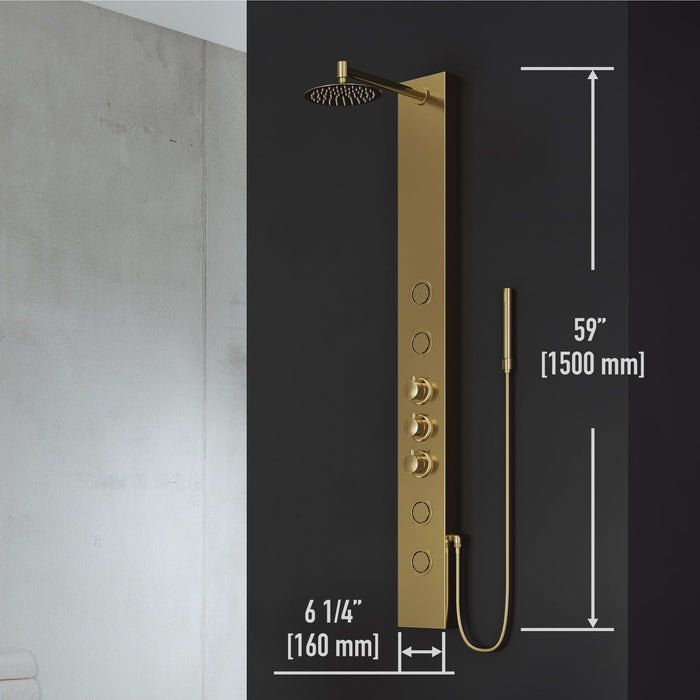

- 59-inch-high by 6-inch-wide panel.
- Inner Guard technology helps reduce mineral buildup in the body jets.
- Maximum flow rate: 1.8 GPM; 1/2-inch compression water connections.
- Mounting hardware, bracket, hand shower, controls, supply lines and thermostatic valve are included.
- Manufacturer limited warranty; see the linked warranty document for coverage periods, eligibility and exclusions.
Vigo VG08013MG Ellington 4-Jet Shower Panel System Specifications
- Model Number: VG08013MG
- Collection: Ellington
- Product Type: 4-Jet Shower Panel System
- Finish: Matte Brushed Gold
- Material: Aluminum
- Application: Commercial and Residential
- Shape: Rectangular
- Style: Modern / Contemporary
- Country of Origin: China
- Body Jets: 4
- Rainfall Showerhead Size (in.): 8
- Rainfall Showerhead: Round; Adjustable
- Hand Shower Hose Length (in.): 58
- Additional Features: Body Spray; Corrosion Resistant; Easy to Install; Flexible Hose; Hot/Cold Indicators; Kink Free Hose; Scald Guard
- Water Efficient: No
- Maximum Flow Rate: 1.8 gallons per minute
- Maximum Water Pressure (psi): 60
- Corrosion Resistant: Yes
- Rust Resistant: Yes
Vigo VG08013MG Ellington 4-Jet Shower Panel System Dimensions
Overall dimensions and spout measurements are nominal values from the vendor worksheet. Refer to the installation drawings for detailed measurements before planning the installation.
- Overall Depth (in.): 20
- Overall Height (in.): 59
- Weight (lb.): 29
- Overall Width (in.): 6
- Connection Size (in.): 1/2
